HP8S36TB

LAPIS Semiconductor

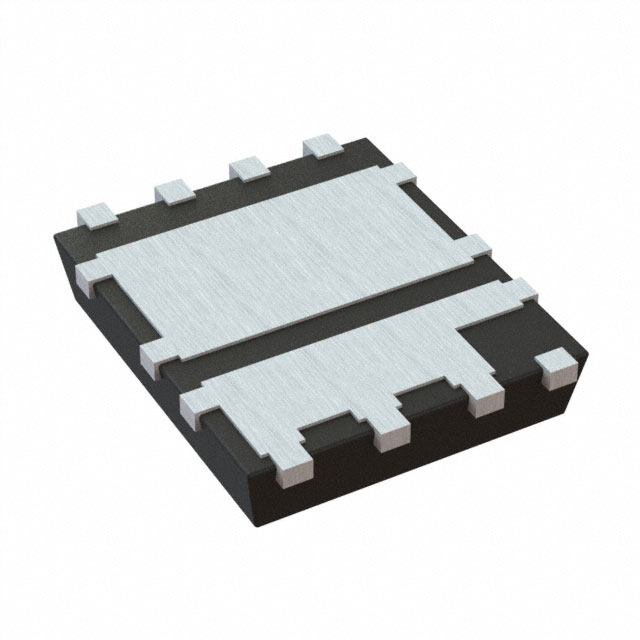

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HP8S36TB
Manufacturer/Brand:	LAPIS Semiconductor
Product description	30V NCH+NCH MIDDLE POWER MOSFET,
Datasheets:	1.HP8S36TB.pdf 2.HP8S36TB.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	81292 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 81292 pcs

Reference Price (In US Dollars)

1 pcs: $0.545

10 pcs: $0.483

100 pcs: $0.382

500 pcs: $0.296

1000 pcs: $0.234

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.545

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HP8S36TB

Part Number	HP8S36TB	Manufacturer	LAPIS Semiconductor
Description	30V NCH+NCH MIDDLE POWER MOSFET,	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	81292 pcs	Data sheet	1.HP8S36TB.pdf 2.HP8S36TB.pdf
Vgs(th) (Max) @ Id	2.5V @ 1mA	Supplier Device Package	8-HSOP
Series	-	Rds On (Max) @ Id, Vgs	2.4 mOhm @ 32A, 10V
Power - Max	29W	Packaging	Original-Reel®
Package / Case	8-PowerTDFN	Other Names	HP8S36TBDKR
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	40 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Capacitance (Ciss) (Max) @ Vds	6100pF @ 15V
Gate Charge (Qg) (Max) @ Vgs	47nC @ 4.5V	FET Type	2 N-Channel (Half Bridge)
FET Feature	-	Drain to Source Voltage (Vdss)	30V
Detailed Description	Mosfet Array 2 N-Channel (Half Bridge) 30V 27A, 80A 29W Surface Mount 8-HSOP	Current - Continuous Drain (Id) @ 25°C	27A, 80A
