BD9A302QWZ-E2

LAPIS Semiconductor

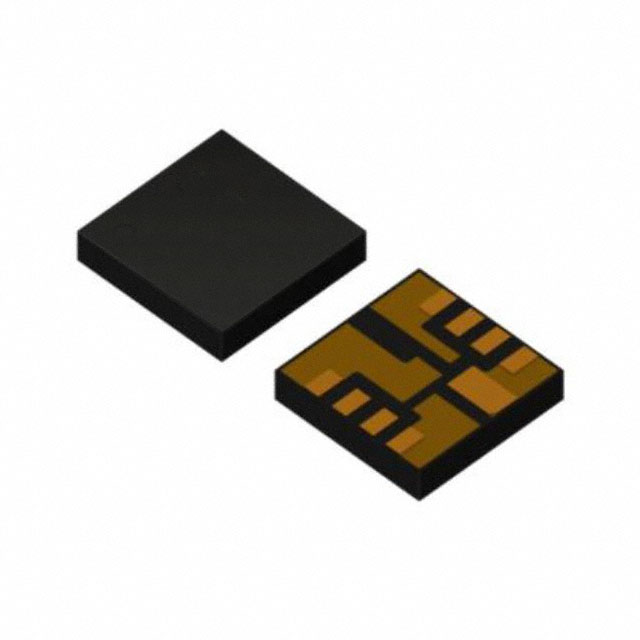

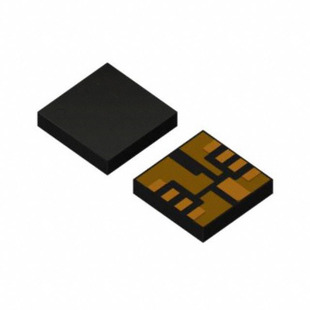

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BD9A302QWZ-E2
Manufacturer/Brand:	LAPIS Semiconductor
Product description	STANDARDINTEGRATED FETBUCKSYNCHR
Datasheets:	BD9A302QWZ-E2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	166288 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 166288 pcs

Reference Price (In US Dollars)

1 pcs: $0.316

10 pcs: $0.275

25 pcs: $0.244

100 pcs: $0.212

250 pcs: $0.185

500 pcs: $0.157

1000 pcs: $0.126

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.316

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BD9A302QWZ-E2

Part Number	BD9A302QWZ-E2	Manufacturer	LAPIS Semiconductor
Description	STANDARDINTEGRATED FETBUCKSYNCHR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	166288 pcs	Data sheet	BD9A302QWZ-E2.pdf
Voltage - Output (Min/Fixed)	0.8V	Voltage - Output (Max)	3.85V
Voltage - Input (Min)	2.7V	Voltage - Input (Max)	5.5V
Topology	Buck	Synchronous Rectifier	Yes
Supplier Device Package	UMMP008AZ020	Series	-
Packaging	Original-Reel®	Package / Case	8-XFDFN Exposed Pad
Output Type	Adjustable	Output Configuration	Positive
Other Names	BD9A302QWZ-E2DKR	Operating Temperature	-40°C ~ 85°C (TA)
Number of Outputs	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	17 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Function	Step-Down
Frequency - Switching	1MHz	Detailed Description	Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 3A 8-XFDFN Exposed Pad
Current - Output	3A
