LAPIS Semiconductor
| Part Number | BD7755RFV-E2 | Manufacturer | LAPIS Semiconductor |
|---|---|---|---|
| Description | IC MOTOR DRIVER PAR 54HTSSOP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22175 pcs | Data sheet | BD7755RFV-E2.pdf |
| Voltage - Supply | 4.3 V ~ 5.5 V, 10.8 V ~ 13.2 | Voltage - Load | - |
| Technology | Bipolar, Power MOSFET | Supplier Device Package | 54-HTSSOP-B |
| Series | - | Rds On (Typ) | - |

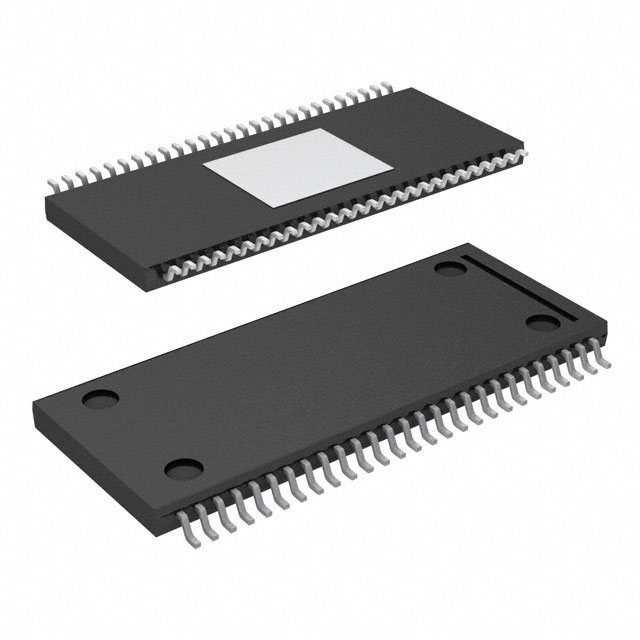

| Packaging | Tape & Reel (TR) | Package / Case | 54-VSOP (0.295", 7.50mm Width) Exposed Pad |
| Output Configuration | Half Bridge (19) | Other Names | BD7755RFV-E2-ND BD7755RFV-E2TR BD7755RFVE2 |
| Operating Temperature | -20°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 9 Weeks |
| Load Type | Inductive | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Interface | Logic | Features | - |
| Fault Protection | Over Temperature | Detailed Description | Half Bridge (19) Driver DC Motors, General Purpose, Stepper Motors Bipolar, Power MOSFET 54-HTSSOP-B |
| Current - Peak Output | - | Current - Output / Channel | 500mA, 1A |
| Base Part Number | BD7755 | Applications | DC Motors, General Purpose, Stepper Motors |
