APBD3224ESGC-F01

Kingbright

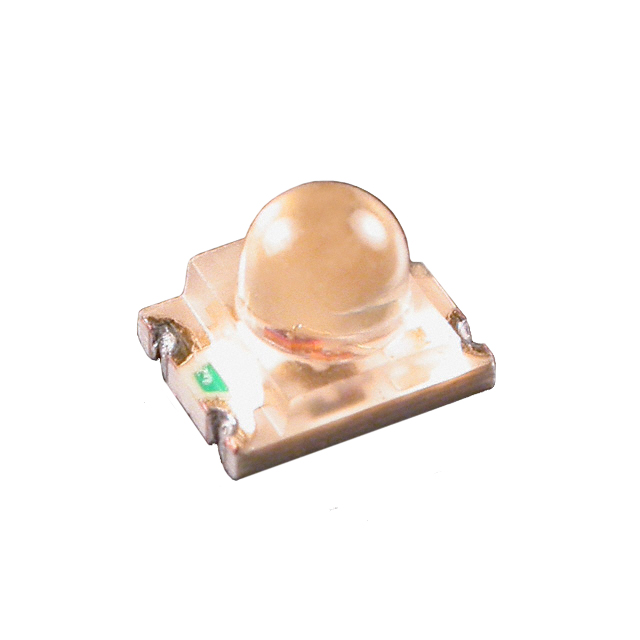

Image may be representation. See specifications for product details.

Product Overview

Part Number:	APBD3224ESGC-F01
Manufacturer/Brand:	Kingbright
Product description	LED GREEN/RED CLEAR SMD
Datasheets:	APBD3224ESGC-F01.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	499010 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 499010 pcs

Reference Price (In US Dollars)

1500 pcs: $0.06

3000 pcs: $0.055

7500 pcs: $0.05

10500 pcs: $0.046

37500 pcs: $0.045

75000 pcs: $0.043

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.06

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of APBD3224ESGC-F01

Part Number	APBD3224ESGC-F01	Manufacturer	Kingbright
Description	LED GREEN/RED CLEAR SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	499010 pcs	Data sheet	APBD3224ESGC-F01.pdf
Wavelength - Peak	565nm Green, 627nm Red	Wavelength - Dominant	568nm Green, 617nm Red
Voltage - Forward (Vf) (Typ)	2.2V Green, 2V Red	Viewing Angle	20°
Supplier Device Package	SMD	Size / Dimension	3.20mm L x 2.40mm W
Series	-	Packaging	Tape & Reel (TR)
Package / Case	1210 (3225 Metric)	Other Names	754-1076-2 APBD3224ESGCF01
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	3 (168 Hours)
Millicandela Rating	55mcd Green, 40mcd Red	Manufacturer Standard Lead Time	9 Weeks
Lens Transparency	Clear	Lens Style/Size	Round with Domed Top, 1.80mm
Lens Color	Colorless	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height (Max)	2.40mm	Features	-
Detailed Description	Green, Red 568nm Green, 617nm Red LED Indication - Discrete 2.2V Green, 2V Red 1210 (3225 Metric)	Current - Test	20mA Green, 20mA Red
Configuration	Independent	Color	Green, Red
