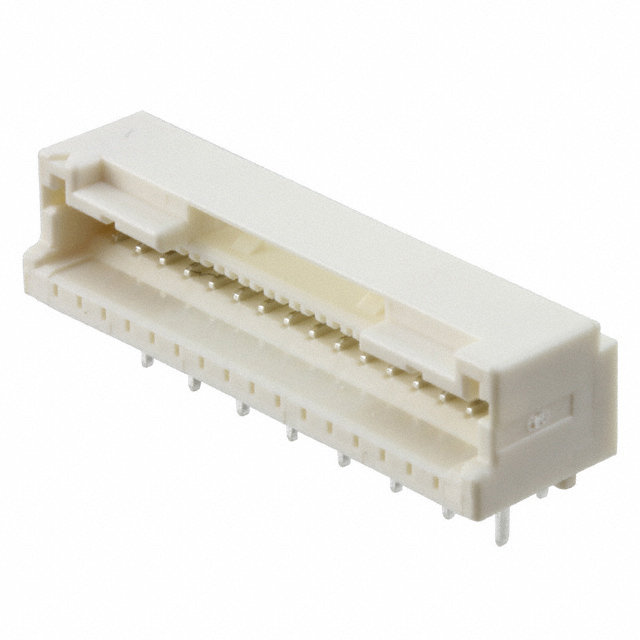

S16B-ZESK-2D(T)(LF)(SN)

JST

Image may be representation. See specifications for product details.

Product Overview

Part Number:	S16B-ZESK-2D(T)(LF)(SN)
Manufacturer/Brand:	JST
Product description	CONN HEADER 16POS 1.5MM T/H R/A
Datasheets:	S16B-ZESK-2D(T)(LF)(SN).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	100782 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 100782 pcs

Reference Price (In US Dollars)

384 pcs: $0.366

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.366

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of S16B-ZESK-2D(T)(LF)(SN)

Part Number	S16B-ZESK-2D(T)(LF)(SN)	Manufacturer	JST
Description	CONN HEADER 16POS 1.5MM T/H R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	100782 pcs	Data sheet	S16B-ZESK-2D(T)(LF)(SN).pdf
Voltage Rating	100V	Termination	Kinked Pin, Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	ZE	Row Spacing - Mating	-
Pitch - Mating	0.059" (1.50mm)	Packaging	Tray
Overall Contact Length	-	Other Names	455-2667 S16B-ZESK-2D(LF)(SN) S16BZESK2DTLFSN
Operating Temperature	-25°C ~ 85°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	16
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	24 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Insulation Height	0.248" (6.30mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Guide	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole, Right Angle 16 position 0.059" (1.50mm)	Current Rating	2A
Contact Type	Outer Shroud Contact	Contact Shape	Rectangular
Contact Material	Copper Alloy	Contact Length - Post	0.134" (3.40mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	-
