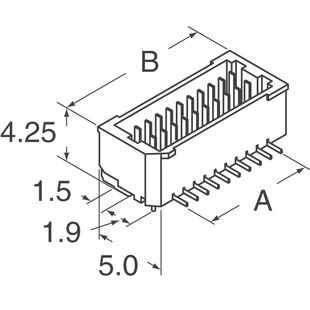

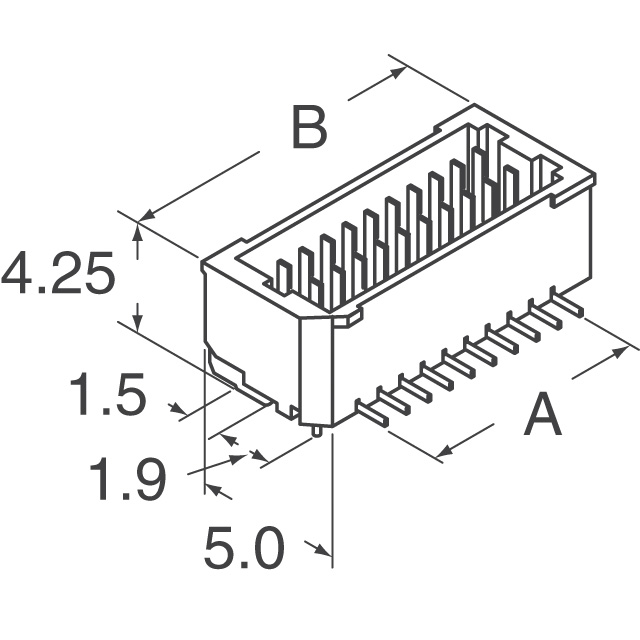

JST
| Part Number | BM20B-SRDS-A-G-TF | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HEADER SHD 20POS TOP W/BOSS | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5359 pcs | Data sheet | 1.BM20B-SRDS-A-G-TF.pdf2.BM20B-SRDS-A-G-TF.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | SHD | Row Spacing - Mating | - |
| Pitch - Mating | 0.039" (1.00mm) | Packaging | Cut Tape (CT) |
| Overall Contact Length | - | Other Names | 455-1448-1 BM20BSRDSAGTF |
| Operating Temperature | -25°C ~ 85°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 20 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 6.3mm |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Insulation Height | 0.167" (4.25mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide, Solder Retention |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 20 position 0.039" (1.00mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
