JST Sales America Inc.

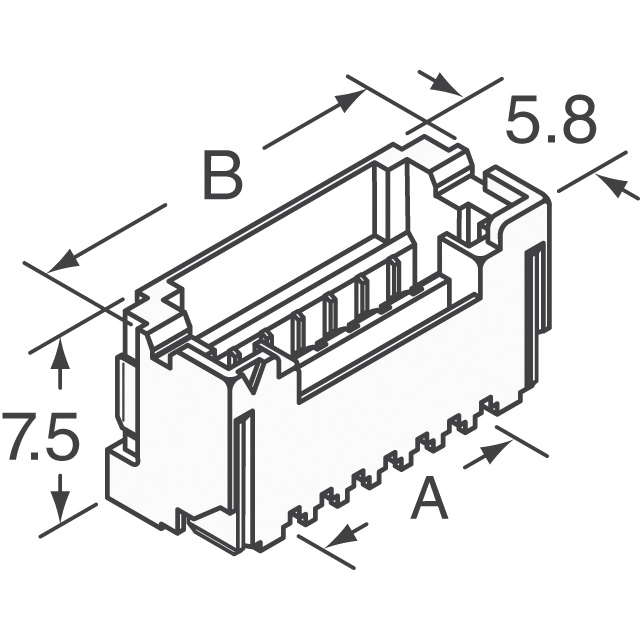

| Part Number | BM16B-ZESS-TBT(LF)(SN) | Manufacturer | JST Sales America Inc. |
|---|---|---|---|
| Description | CONN HEADER VERT SMD 16POS ZE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65122 pcs | Data sheet | BM16B-ZESS-TBT(LF)(SN).pdf |
| Voltage - DC Spark Over (Nom) | Copper Alloy | Type Attributes | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Stacking Direction | Outer Shroud Contact | Shrouding | 0.059" (1.50mm) |
| Shield Termination | Rectangular | Series | ZE |
| Row Spacing - Mating | Shrouded - 4 Wall | RoHS Status | Tape & Reel (TR) |
| Ripple Current - Low Frequency | - | Pitch - Connector | 100V |
| Overall Contact Length | - | Other Names | 455-2394-2 455-2394-2-ND BM16B-ZESS-TBT (LF)(SN) BM16B-ZESS-TBT(LF)(SN)- |
| Operating Temperature | -25°C ~ 85°C | Number of Rows | 1 |
| Number of Positions | 16 | Number of Contacts | - |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Material - Insulation | All |
| Manufacturer Standard Lead Time | 14 Weeks | Manufacturer Part Number | BM16B-ZESS-TBT(LF)(SN) |
| Length - Post (Mating) | 9.4mm | Insulation Material | Tin |
| Insulation Height | - | Features | Pick and Place, Solder Retention |
| Expanded Description | 16 Positions Header Connector 0.059" (1.50mm) Surface Mount Tin | Description | CONN HEADER VERT SMD 16POS ZE |
| Current Rating | 2A | Current - Max/Contact | Locking Ramp |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | Polyamide (PA), Nylon | Contact Finish Thickness - Mating | Tin |
| Contact Finish - Post | - | Contact Finish - Mating | 0.295" (7.50mm) |
| Connector Type | Header | Actual Diameter | Natural |
