JST

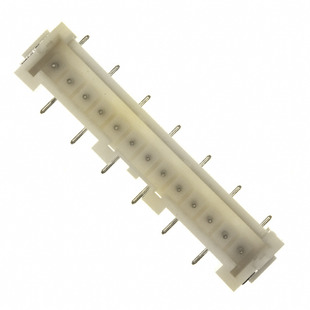

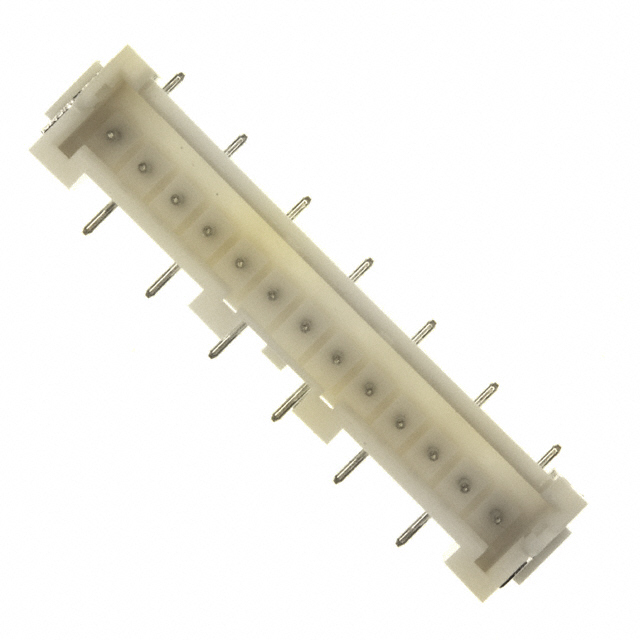

| Part Number | BM13B-XASS-TF(LF)(SN) | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HDR XA 13POS 2.5MM TIN SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 74686 pcs | Data sheet | BM13B-XASS-TF(LF)(SN).pdf |
| Voltage Rating | 250V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | XA | Row Spacing - Mating | - |
| Pitch - Mating | 0.098" (2.50mm) | Packaging | Tape & Reel (TR) |
| Overall Contact Length | - | Other Names | 455-2029-2 |
| Operating Temperature | -25°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 13 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 11.9mm |
| Manufacturer Standard Lead Time | 24 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.370" (9.40mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | Solder Retention | Fastening Type | Locking Ramp |
| Detailed Description | Connector Header Surface Mount 13 position 0.098" (2.50mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
