B2B-PH-SM4-TBT(LF)(SN)

JST

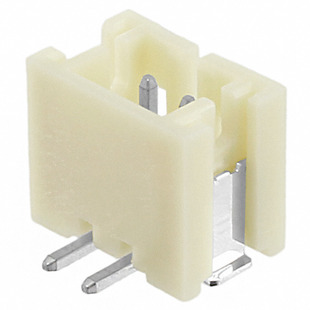

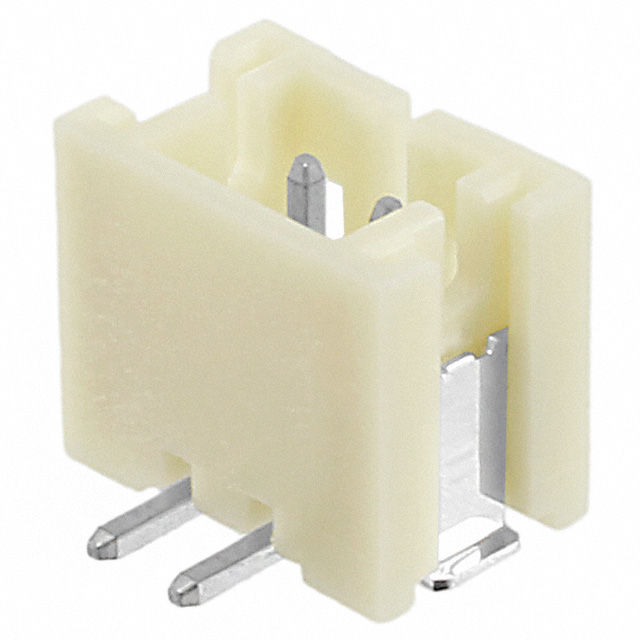

Image may be representation. See specifications for product details.

Product Overview

Part Number:	B2B-PH-SM4-TBT(LF)(SN)
Manufacturer/Brand:	JST
Product description	CONN HEADER PH TOP 2POS 2MM SMD
Datasheets:	B2B-PH-SM4-TBT(LF)(SN).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	180440 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 180440 pcs

Reference Price (In US Dollars)

1000 pcs: $0.138

2000 pcs: $0.134

3000 pcs: $0.125

5000 pcs: $0.121

10000 pcs: $0.113

25000 pcs: $0.109

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.138

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of B2B-PH-SM4-TBT(LF)(SN)

Part Number	B2B-PH-SM4-TBT(LF)(SN)	Manufacturer	JST
Description	CONN HEADER PH TOP 2POS 2MM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	180440 pcs	Data sheet	B2B-PH-SM4-TBT(LF)(SN).pdf
Voltage Rating	100V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	PH	Row Spacing - Mating	-
Pitch - Mating	0.079" (2.00mm)	Packaging	Tape & Reel (TR)
Overall Contact Length	-	Other Names	455-2872-2 B2B-PH-SM4-TBT(LF)(SN)(P) B2B-PH-SM4-TBT(LF)(SN)(P)-ND B2B-PH-SM4-TBT(LF)(SN)-ND B2BPHSM4TBTLFSN Q4658453
Operating Temperature	-25°C ~ 85°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	8.6mm
Manufacturer Standard Lead Time	24 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA6T), Nylon 6T	Insulation Height	0.260" (6.60mm)
Insulation Color	Natural	Ingress Protection	-
Features	Pick and Place, Solder Retention	Fastening Type	Detent Lock
Detailed Description	Connector Header Surface Mount 2 position 0.079" (2.00mm)	Current Rating	2A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	-
Contact Length - Mating	0.130" (3.30mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	-
