B14B-PHDSS(LF)(SN)

JST

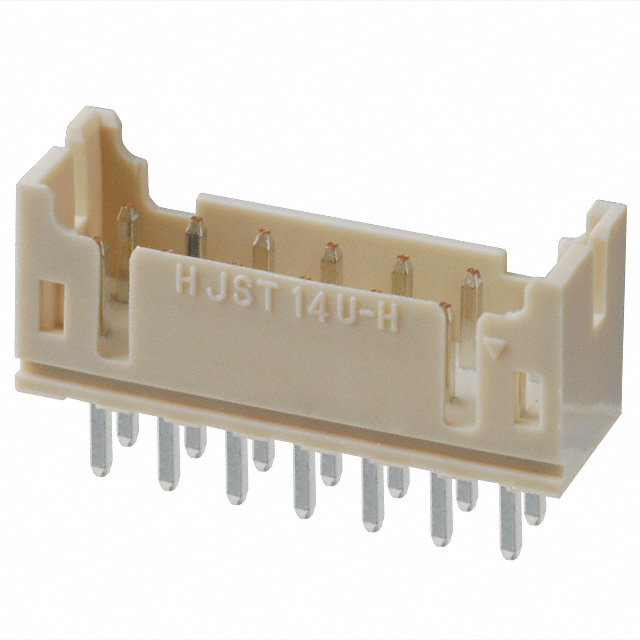

Image may be representation. See specifications for product details.

Product Overview

Part Number:	B14B-PHDSS(LF)(SN)
Manufacturer/Brand:	JST
Product description	CONN HEADER PHD TOP 14POS 2MM
Datasheets:	B14B-PHDSS(LF)(SN).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	222636 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 222636 pcs

Reference Price (In US Dollars)

1 pcs: $0.215

10 pcs: $0.201

100 pcs: $0.154

500 pcs: $0.134

1000 pcs: $0.11

5000 pcs: $0.097

10000 pcs: $0.09

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.215

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of B14B-PHDSS(LF)(SN)

Part Number	B14B-PHDSS(LF)(SN)	Manufacturer	JST
Description	CONN HEADER PHD TOP 14POS 2MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	222636 pcs	Data sheet	B14B-PHDSS(LF)(SN).pdf
Voltage Rating	250V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	PHD	Row Spacing - Mating	0.079" (2.00mm)
Pitch - Mating	0.079" (2.00mm)	Packaging	Bulk
Overall Contact Length	0.291" (7.40mm)	Other Names	455-1764 B14B-PHDSS(LF) (SN)(P) B14B-PHDSS(LF)(SN)(P) B14BPHDSSLFSNP
Operating Temperature	-25°C ~ 85°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	14
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	8.8mm
Manufacturer Standard Lead Time	24 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon, Glass Filled	Insulation Height	0.256" (6.50mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Detent Lock
Detailed Description	Connector Header Through Hole 14 position 0.079" (2.00mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	0.118" (3.00mm)
Contact Length - Mating	0.114" (2.90mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	-
