WD1F164WP2T22

JAE Electronics, Inc.

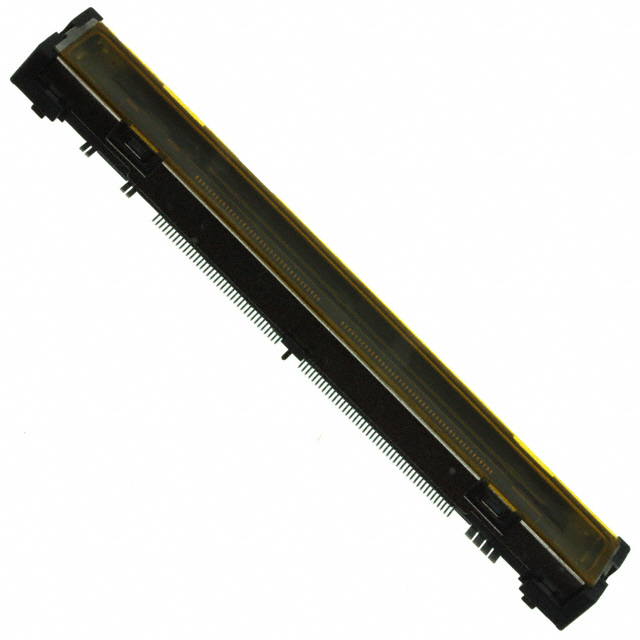

Image may be representation. See specifications for product details.

Product Overview

Part Number:	WD1F164WP2T22
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	CONN RECEPT VER GOLD 164POS
Datasheets:	WD1F164WP2T22.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	18544 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 18544 pcs

Reference Price (In US Dollars)

88 pcs: $2.072

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.072

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of WD1F164WP2T22

Part Number	WD1F164WP2T22	Manufacturer	JAE Electronics, Inc.
Description	CONN RECEPT VER GOLD 164POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	18544 pcs	Data sheet	WD1F164WP2T22.pdf
Series	WD1	Pitch	0.020" (0.50mm)
Packaging	Tray	Other Names	670-2387
Number of Rows	2	Number of Positions	164
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mated Stacking Heights	16.5mm	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.240" (6.10mm)
Features	Board Guide, Solder Retention	Detailed Description	164 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Contact Finish Thickness	3.90µin (0.099µm)	Contact Finish	Gold
Connector Type	Receptacle, Center Strip Contacts
