TX24-80R-6ST-E1E

JAE Electronics, Inc.

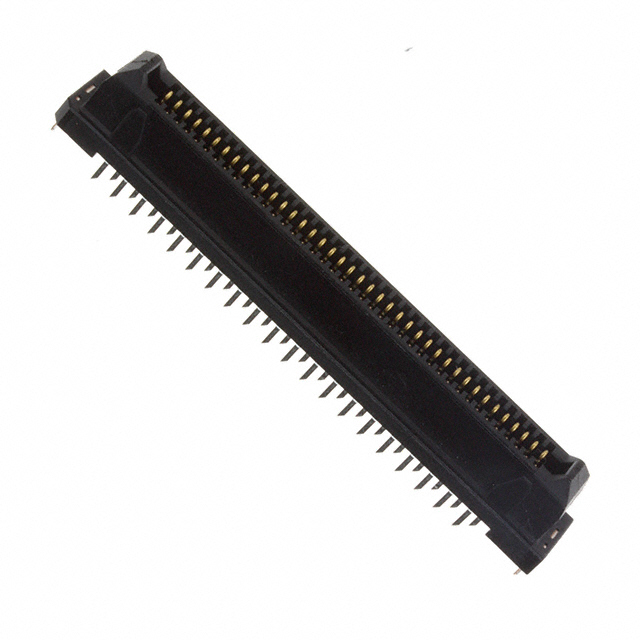

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TX24-80R-6ST-E1E
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	CONN RCPT 1.27MM 80POS GOLD PCB
Datasheets:	1.TX24-80R-6ST-E1E.pdf 2.TX24-80R-6ST-E1E.pdf 3.TX24-80R-6ST-E1E.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	81434 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 81434 pcs

Reference Price (In US Dollars)

1 pcs: $0.905

10 pcs: $0.822

25 pcs: $0.772

50 pcs: $0.738

100 pcs: $0.704

369 pcs: $0.637

738 pcs: $0.587

1107 pcs: $0.503

2583 pcs: $0.47

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.905

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TX24-80R-6ST-E1E

Part Number	TX24-80R-6ST-E1E	Manufacturer	JAE Electronics, Inc.
Description	CONN RCPT 1.27MM 80POS GOLD PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	81434 pcs	Data sheet	1.TX24-80R-6ST-E1E.pdf 2.TX24-80R-6ST-E1E.pdf 3.TX24-80R-6ST-E1E.pdf
Series	TX24	Pitch	0.050" (1.27mm)
Packaging	Tray	Other Names	670-1413 TX2480R6STE1E
Number of Rows	2	Number of Positions	80
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mated Stacking Heights	12mm, 14mm, 18mm	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.406" (10.30mm)
Features	Board Lock	Detailed Description	80 Position Connector Receptacle, Outer Shroud Contacts Through Hole Gold
Contact Finish Thickness	3.90µin (0.099µm)	Contact Finish	Gold
Connector Type	Receptacle, Outer Shroud Contacts
