TX24-40R-6ST-N1E

JAE Electronics, Inc.

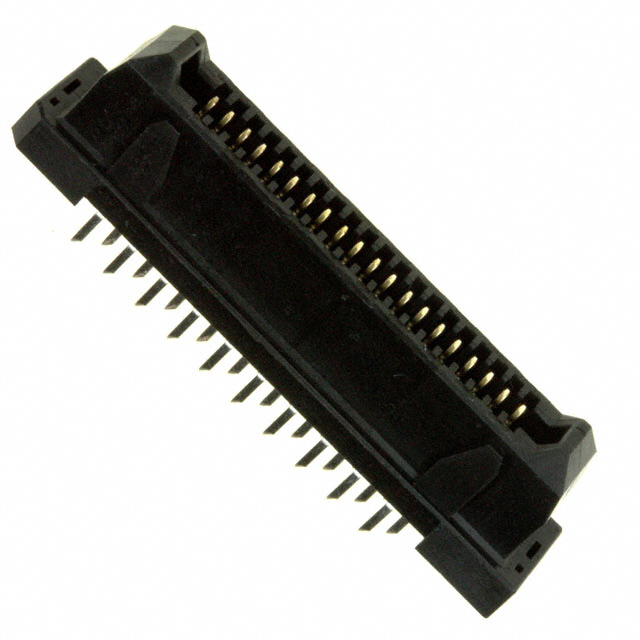

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TX24-40R-6ST-N1E
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	CONN RCPT 1.27MM 40POS GOLD PCB
Datasheets:	1.TX24-40R-6ST-N1E.pdf 2.TX24-40R-6ST-N1E.pdf 3.TX24-40R-6ST-N1E.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	87820 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 87820 pcs

Reference Price (In US Dollars)

1 pcs: $0.507

10 pcs: $0.46

25 pcs: $0.431

50 pcs: $0.413

100 pcs: $0.394

250 pcs: $0.356

864 pcs: $0.319

1728 pcs: $0.272

2592 pcs: $0.263

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.507

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TX24-40R-6ST-N1E

Part Number	TX24-40R-6ST-N1E	Manufacturer	JAE Electronics, Inc.
Description	CONN RCPT 1.27MM 40POS GOLD PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	87820 pcs	Data sheet	1.TX24-40R-6ST-N1E.pdf 2.TX24-40R-6ST-N1E.pdf 3.TX24-40R-6ST-N1E.pdf
Series	TX24	Pitch	0.050" (1.27mm)
Packaging	Tray	Other Names	670-1385 TX2440R6STN1E
Number of Rows	2	Number of Positions	40
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mated Stacking Heights	12mm, 14mm, 18mm	Manufacturer Standard Lead Time	15 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.406" (10.30mm)
Features	-	Detailed Description	40 Position Connector Receptacle, Outer Shroud Contacts Through Hole Gold
Contact Finish Thickness	3.90µin (0.099µm)	Contact Finish	Gold
Connector Type	Receptacle, Outer Shroud Contacts
