MM70-314-310B2-2-R500

JAE Electronics, Inc.

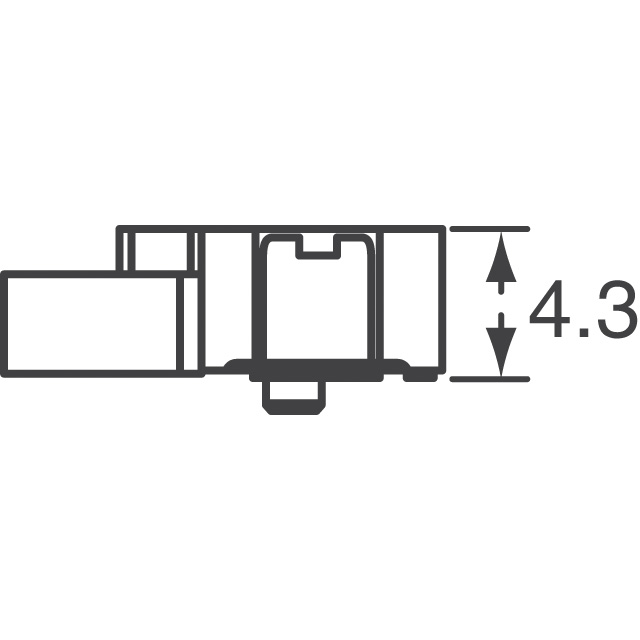

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MM70-314-310B2-2-R500
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	CONN MXM FMALE 314POS 0.020 GOLD
Datasheets:	1.MM70-314-310B2-2-R500.pdf 2.MM70-314-310B2-2-R500.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	23441 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 23441 pcs

Reference Price (In US Dollars)

500 pcs: $1.559

1000 pcs: $1.364

1500 pcs: $1.335

2500 pcs: $1.296

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.559

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MM70-314-310B2-2-R500

Part Number	MM70-314-310B2-2-R500	Manufacturer	JAE Electronics, Inc.
Description	CONN MXM FMALE 314POS 0.020 GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23441 pcs	Data sheet	1.MM70-314-310B2-2-R500.pdf 2.MM70-314-310B2-2-R500.pdf
Termination	Solder	Series	MM70
Read Out	Dual	Pitch	0.020" (0.50mm)
Packaging	Tape & Reel (TR)	Other Names	670-2432-2
Operating Temperature	-40°C ~ 85°C	Number of Rows	2
Number of Positions/Bay/Row	-	Number of Positions	314
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Insulation	Liquid Crystal Polymer (LCP), Glass Filled	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Gender	Female
Flange Feature	-	Features	Board Guide, Latches
Contact Type	-	Contact Material	Copper Alloy
Contact Finish Thickness	11.8µin (0.30µm)	Contact Finish	Gold
Color	Black	Card Type	MXM 3.0
Card Thickness	0.047" (1.20mm)
