JAE Electronics, Inc.

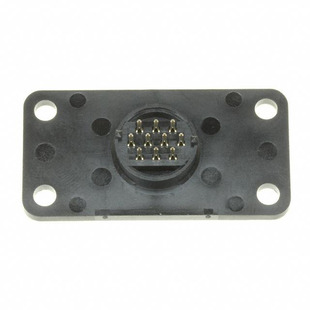

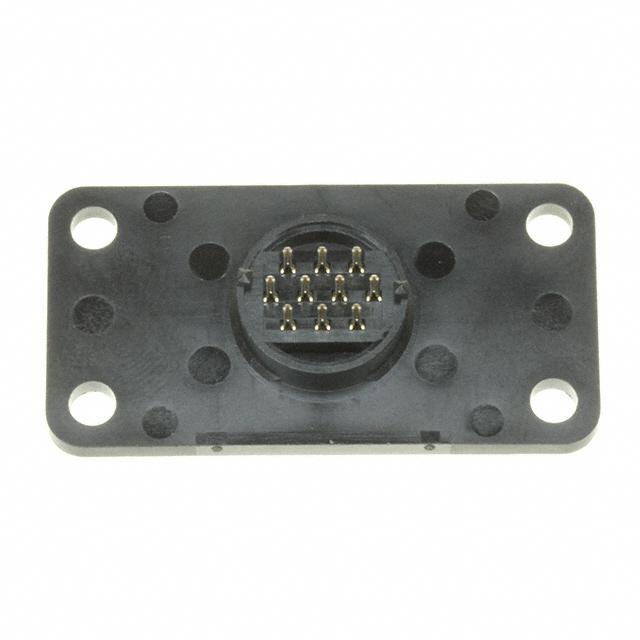

| Part Number | JN1AS10UL1 | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RCPT MALE 10POS GOLD SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 34156 pcs | Data sheet | 1.JN1AS10UL1.pdf2.JN1AS10UL1.pdf3.JN1AS10UL1.pdf |
| Voltage Rating | 200VAC | Termination | Solder |
| Shielding | - | Shell Size, MIL | - |
| Shell Size - Insert | S | Shell Material | Synthetic Resin |
| Shell Finish | - | Series | JN1 |
| Packaging | Tray | Other Names | 670-1056 |
| Orientation | N (Normal) | Operating Temperature | -20°C ~ 125°C |
| Number of Positions | 10 | Mounting Type | Panel Mount, Through Hole |
| Mounting Feature | Flange | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Synthetic Resin |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Features | - |
| Fastening Type | Push-Twist | Detailed Description | 10 Position Circular Connector Receptacle, Male Pins Solder Gold |
| Current Rating | 3A | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | 3.90µin (0.099µm) | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Male Pins | Color | Black |
| Cable Opening | 0.472" (12.00mm) | Backshell Material, Plating | - |
| Applications | - |
