JAE Electronics
| Part Number | JB1DB05PL2 | Manufacturer | JAE Electronics |
|---|---|---|---|
| Description | CONN PLUG STR 5POS CRIMP PIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4505 pcs | Data sheet | 1.JB1DB05PL2.pdf2.JB1DB05PL2.pdf3.JB1DB05PL2.pdf |
| Wire Gauge or Range - AWG | 22 | Usage | Shielded |
| Type Attributes | IP67 - Dust Tight, Waterproof | Type | For Male Pins |
| Stacking Direction | Crimp | Shield Termination | Circular |
| Shell Material, Finish | - | Shell Finish | Zinc Alloy |
| Series | JB1 | RoHS Status | Bulk |
| Plug/Mating Plug Diameter | Silver | Other Names | 670-2134 |
| Operating Temperature | -30°C ~ 85°C | Number of Positions | 5 |
| Note | Contacts Not Included | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Manufacturer Standard Lead Time | 12 Weeks | Manufacturer Part Number | JB1DB05PL2 |
| Large Diameter Supplied | B5 | Insert Material | Zinc Alloy, Nickel |
| Includes | - | Features | Backshell, Cable Clamp, Coupling Nut |

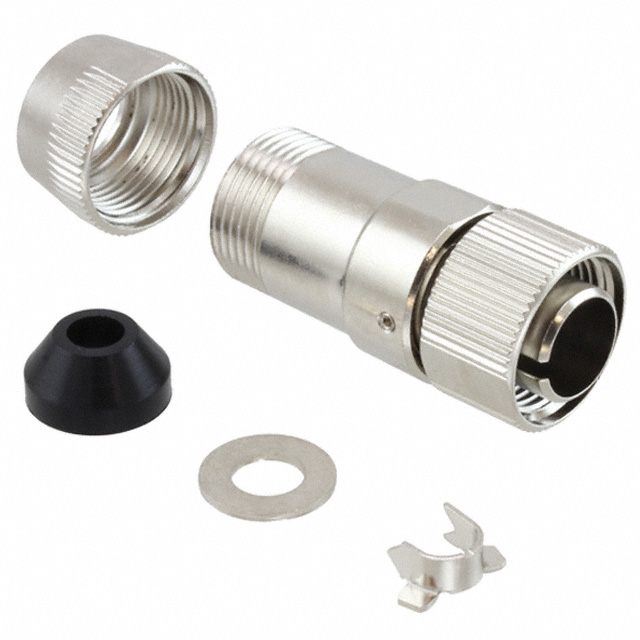

| Expanded Description | 5 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut | Description | CONN PLUG STR 5POS CRIMP PIN |
| Current - Max/Contact | Threaded | Coupling Nut Material, Plating | 0.709" (18.01mm) |
| Coupling Nut Diameter | Nickel | Contact Shape | Synthetic Resin |
| Contact Material | Keyed | Connector Type | Plug Housing |
| Body Material | - |
