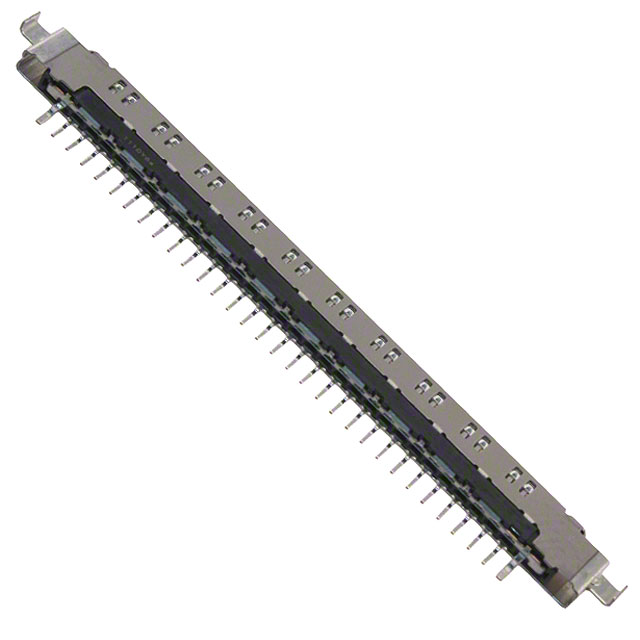

Part Number | FI-XB30SRL-HF11 | Manufacturer | JAE Electronics, Inc. |
---|---|---|---|
Description | CONN RCPT 1MM 30POS R/A SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 5921 pcs | Data sheet | 1.FI-XB30SRL-HF11.pdf2.FI-XB30SRL-HF11.pdf3.FI-XB30SRL-HF11.pdf |
Voltage Rating | 200V | Termination | Solder |
Style | Board to Cable/Wire | Series | FI-X |
Row Spacing - Mating | - | Pitch - Mating | 0.039" (1.00mm) |
Packaging | Bulk | Other Names | 670-2087 FIXB30SRLHF11 |
Operating Temperature | -40°C ~ 80°C | Number of Rows | 1 |
Number of Positions Loaded | All | Number of Positions | 30 |
Mounting Type | Board Cutout, Bottom Mount, Surface Mount, Right Angle, Reverse Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Plastic |
Insulation Height | - | Insulation Color | Black |
Ingress Protection | - | Features | Grounding Pins, Shielded, Solder Retention |
Fastening Type | Friction Lock | Detailed Description | 30 Position Receptacle Connector 0.039" (1.00mm) Board Cutout, Bottom Mount, Surface Mount, Right Angle, Reverse Mount Gold |
Current Rating | 1A per Contact | Contact Type | Non-Gendered |
Contact Shape | - | Contact Material | Copper Alloy |
Contact Length - Post | - | Contact Finish Thickness - Post | - |
Contact Finish Thickness - Mating | 12.0µin (0.30µm) | Contact Finish - Post | Tin |
Contact Finish - Mating | Gold | Connector Type | Receptacle |
Applications | General Purpose |
