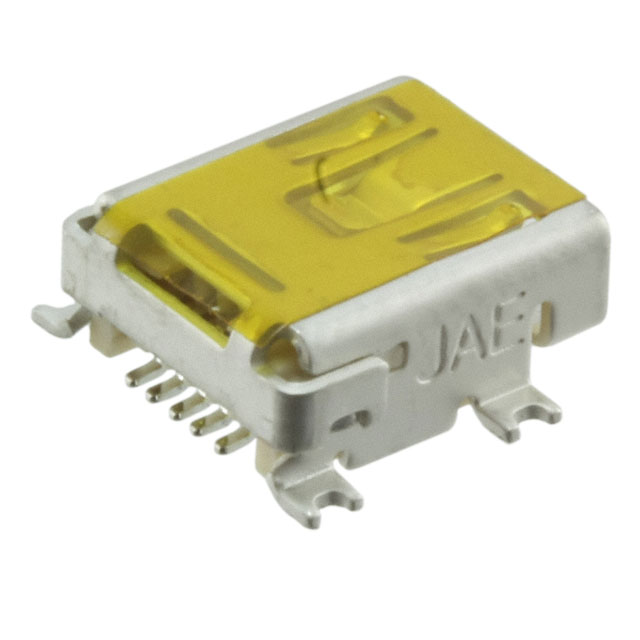

DX1R005HN2E700

JAE Electronics, Inc.

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DX1R005HN2E700
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	CONN RCPT MINI USB 5POS R/A SMD
Datasheets:	1.DX1R005HN2E700.pdf 2.DX1R005HN2E700.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4744 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4744 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DX1R005HN2E700

Part Number	DX1R005HN2E700	Manufacturer	JAE Electronics, Inc.
Description	CONN RCPT MINI USB 5POS R/A SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4744 pcs	Data sheet	1.DX1R005HN2E700.pdf 2.DX1R005HN2E700.pdf
Voltage - Rated	30V	Termination	Solder
Specifications	USB 2.0	Shielding	Unshielded
Shell/Shielding Material	Copper Alloy	Series	DX1
Packaging	Cut Tape (CT)	Other Names	670-1809-1
Operating Temperature	-20°C ~ 60°C	Number of Ports	1
Number of Contacts	5	Mounting Type	Surface Mount, Right Angle
Mounting Feature	Horizontal	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	5000	Material Flammability Rating	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Color	-
Ingress Protection	-	Gender	Receptacle
Features	Board Guide, Solder Retention	Detailed Description	USB - mini A USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
Current Rating	1A	Contact Finish	Gold
Connector Type	USB - mini A
