CE2S111C01

JAE Electronics, Inc.

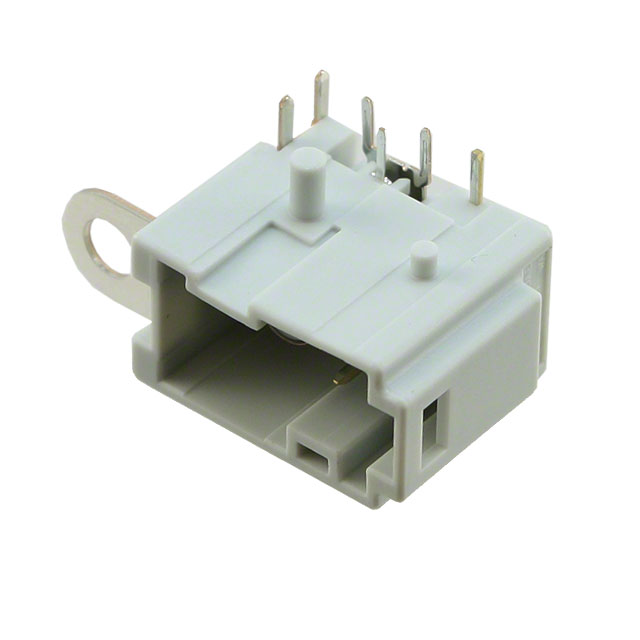

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CE2S111C01
Manufacturer/Brand:	JAE Electronics, Inc.
Product description	COAX BOARD SIDE CONNECTOR
Datasheets:	1.CE2S111C01.pdf 2.CE2S111C01.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	19048 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 19048 pcs

Reference Price (In US Dollars)

810 pcs: $1.758

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.758

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CE2S111C01

Part Number	CE2S111C01	Manufacturer	JAE Electronics, Inc.
Description	COAX BOARD SIDE CONNECTOR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19048 pcs	Data sheet	1.CE2S111C01.pdf 2.CE2S111C01.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	CE2	Row Spacing - Mating	-
Pitch - Mating	-	Packaging	Bulk
Overall Contact Length	-	Operating Temperature	-30°C ~ 70°C
Number of Rows	-	Number of Positions Loaded	All
Number of Positions	2 (1 Coax + 1 Power)	Mounting Type	Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	-
Mated Stacking Heights	-	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Insulation Height	0.394" (10.00mm)	Insulation Color	Gray
Ingress Protection	-	Features	Board Guide, Bracket
Fastening Type	Latch Holder	Detailed Description	Connector Header Through Hole, Right Angle 2 (1 Coax + 1 Power) position
Current Rating	-	Contact Type	Female Socket, Coaxial; Male Pin, Power
Contact Shape	Circular	Contact Material	Copper Alloy
Contact Length - Post	0.118" (3.00mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin	Contact Finish - Mating	Gold, Tin
Connector Type	Header	Applications	Automotive
