ISL80138IVEAJZ-T7A

Intersil

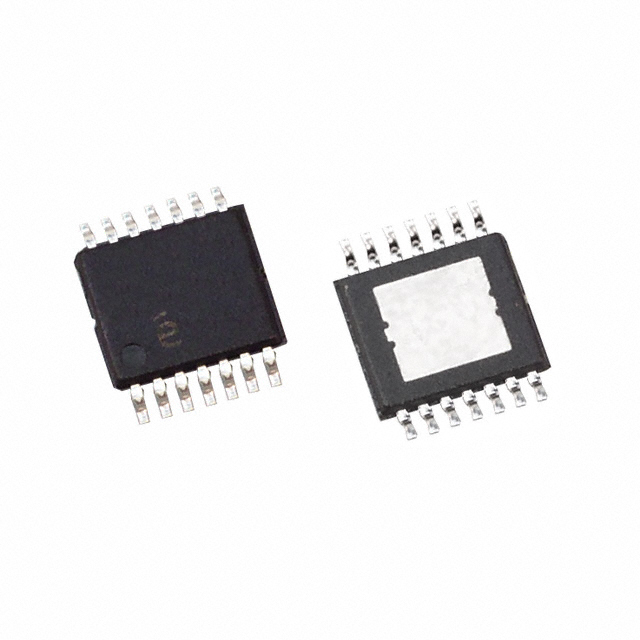

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ISL80138IVEAJZ-T7A
Manufacturer/Brand:	Intersil
Product description	IC REG LIN POS ADJ 14HTSSOP
Datasheets:	ISL80138IVEAJZ-T7A.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	65993 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 65993 pcs

Reference Price (In US Dollars)

1 pcs: $0.791

10 pcs: $0.71

100 pcs: $0.571

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.791

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ISL80138IVEAJZ-T7A

Part Number	ISL80138IVEAJZ-T7A	Manufacturer	Intersil
Description	IC REG LIN POS ADJ 14HTSSOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	65993 pcs	Data sheet	ISL80138IVEAJZ-T7A.pdf
Voltage Dropout (Max)	0.507V @ 150mA	Voltage - Output (Min/Fixed)	2.5V
Voltage - Output (Max)	12V	Voltage - Input (Max)	40V
Supplier Device Package	14-HTSSOP	Series	-
Protection Features	Over Current, Over Temperature, Soft Start	Packaging	Cut Tape (CT)
Package / Case	14-TSSOP (0.173", 4.40mm Width) Exposed Pad	PSRR	66dB (100Hz)
Output Type	Adjustable	Output Configuration	Positive
Other Names	ISL80138IVEAJZ-T7ACT	Operating Temperature	-40°C ~ 125°C
Number of Regulators	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	2 (1 Year)	Manufacturer Standard Lead Time	15 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	Linear Voltage Regulator IC Positive Adjustable 1 Output 2.5 V ~ 12 V 150mA 14-HTSSOP
Current - Supply (Max)	125µA	Current - Quiescent (Iq)	24µA
Current - Output	150mA	Control Features	Enable
Base Part Number	ISL80138
