IRSM005-800MHTR

International Rectifier (Infineon Technologies)

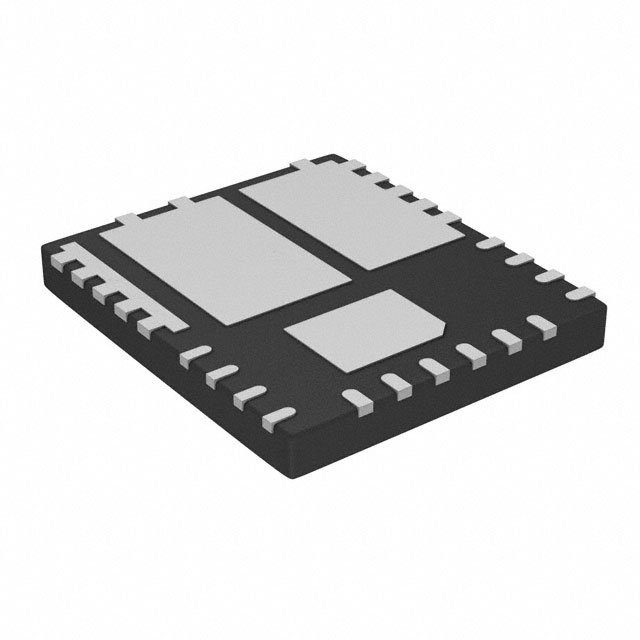

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IRSM005-800MHTR
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	IC GATE DRIVER 40V QFN
Datasheets:	IRSM005-800MHTR.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	56339 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 56339 pcs

Reference Price (In US Dollars)

1 pcs: $1.212

10 pcs: $1.089

100 pcs: $0.892

500 pcs: $0.759

1000 pcs: $0.64

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.212

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IRSM005-800MHTR

Part Number	IRSM005-800MHTR	Manufacturer	International Rectifier (Infineon Technologies)
Description	IC GATE DRIVER 40V QFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	56339 pcs	Data sheet	IRSM005-800MHTR.pdf
Voltage - Supply	10 V ~ 20 V	Voltage - Load	40V (Max)
Technology	Power MOSFET	Supplier Device Package	27-PQFN (7x8)
Series	µIPM™	Rds On (Typ)	2.7 mOhm
Packaging	Cut Tape (CT)	Package / Case	27-PowerVQFN
Output Configuration	Half Bridge	Other Names	IRSM005-800MHCT
Operating Temperature	150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Load Type	Inductive, Capacitive
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	Logic
Features	Bootstrap Circuit	Fault Protection	UVLO
Detailed Description	Half Bridge Driver AC Motors, DC Motors, DC-DC Converters, General Purpose Power MOSFET 27-PQFN (7x8)	Current - Peak Output	-
Current - Output / Channel	80A	Applications	AC Motors, DC Motors, DC-DC Converters, General Purpose
