IRLBA1304P

International Rectifier (Infineon Technologies)

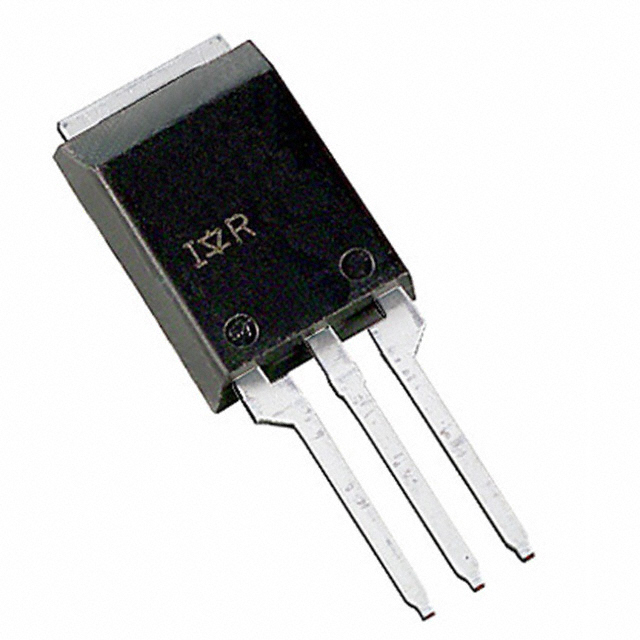

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IRLBA1304P
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	MOSFET N-CH 40V 185A SUPER-220
Datasheets:	IRLBA1304P.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	5635 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5635 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IRLBA1304P

Part Number	IRLBA1304P	Manufacturer	International Rectifier (Infineon Technologies)
Description	MOSFET N-CH 40V 185A SUPER-220	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	5635 pcs	Data sheet	IRLBA1304P.pdf
Vgs(th) (Max) @ Id	1V @ 250µA	Vgs (Max)	±16V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	SUPER-220™ (TO-273AA)
Series	HEXFET®	Rds On (Max) @ Id, Vgs	4 mOhm @ 110A, 10V
Power Dissipation (Max)	300W (Tc)	Packaging	Tube
Package / Case	Super-220™-3 (Straight Leads)	Other Names	*IRLBA1304P
Operating Temperature	-55°C ~ 175°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Input Capacitance (Ciss) (Max) @ Vds	7660pF @ 25V	Gate Charge (Qg) (Max) @ Vgs	140nC @ 4.5V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V	Drain to Source Voltage (Vdss)	40V
Detailed Description	N-Channel 40V 185A (Tc) 300W (Tc) Through Hole SUPER-220™ (TO-273AA)	Current - Continuous Drain (Id) @ 25°C	185A (Tc)
