International Rectifier (Infineon Technologies)

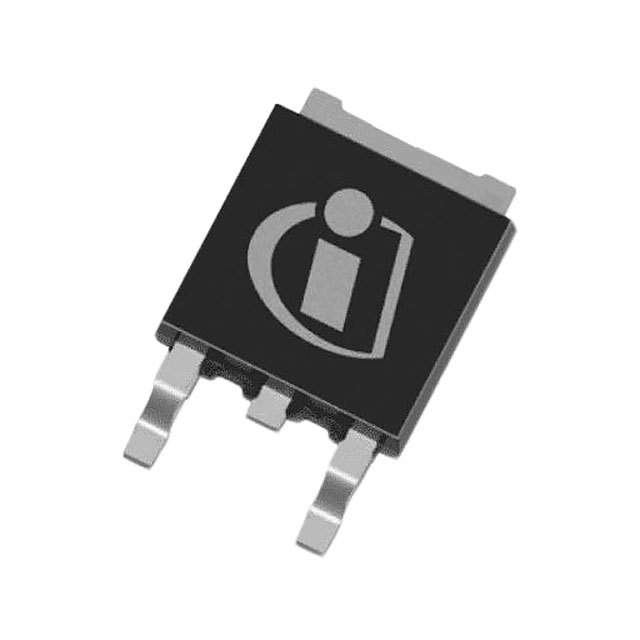

| Part Number | IPD80R360P7ATMA1 | Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|---|---|
| Description | MOSFET N-CH 800V 13A TO252-3 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 85588 pcs | Data sheet | IPD80R360P7ATMA1.pdf |
| Vgs(th) (Max) @ Id | 3.5V @ 280µA | Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) | Supplier Device Package | PG-TO252-3 |
| Series | CoolMOS™ P7 | Rds On (Max) @ Id, Vgs | 360 mOhm @ 5.6A, 10V |
| Power Dissipation (Max) | 84W (Tc) | Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | Other Names | IPD80R360P7ATMA1TR SP001633516 |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 930pF @ 500V | Gate Charge (Qg) (Max) @ Vgs | 30nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Drain to Source Voltage (Vdss) | 800V |
| Detailed Description | N-Channel 800V 13A (Tc) 84W (Tc) Surface Mount PG-TO252-3 | Current - Continuous Drain (Id) @ 25°C | 13A (Tc) |
