BTM7750GPAUMA1

International Rectifier (Infineon Technologies)

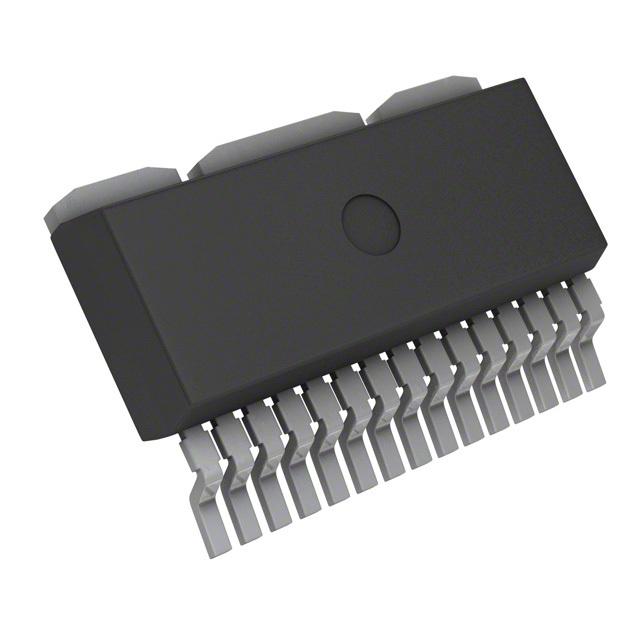

Image may be representation. See specifications for product details.

Product Overview

Part Number:	BTM7750GPAUMA1
Manufacturer/Brand:	International Rectifier (Infineon Technologies)
Product description	IC BRIDGE DRIVER PAR TO263-15
Datasheets:	BTM7750GPAUMA1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15521 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 15521 pcs

Reference Price (In US Dollars)

500 pcs: $2.081

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.081

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of BTM7750GPAUMA1

Part Number	BTM7750GPAUMA1	Manufacturer	International Rectifier (Infineon Technologies)
Description	IC BRIDGE DRIVER PAR TO263-15	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15521 pcs	Data sheet	BTM7750GPAUMA1.pdf
Voltage - Supply	1.8 V ~ 42 V	Voltage - Load	1.8 V ~ 42 V
Technology	DMOS	Supplier Device Package	P-TO263-15-1
Series	TrilithIC™	Rds On (Typ)	45 mOhm LS, 70 mOhm HS
Packaging	Tape & Reel (TR)	Package / Case	TO-263-18 (15 Leads + 3 Tabs)
Output Configuration	Half Bridge (2)	Other Names	BTM7750GP BTM7750GP-ND BTM7750GPAUMA1TR BTM7750GPTR BTM7750GPTR-ND SP000303751
Operating Temperature	-40°C ~ 110°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Load Type	Inductive
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	Logic
Features	Status Flag	Fault Protection	Over Temperature, Short Circuit, UVLO
Detailed Description	Half Bridge (2) Driver DC Motors, General Purpose DMOS P-TO263-15-1	Current - Peak Output	12A
Current - Output / Channel	-	Base Part Number	BTM7750
Applications	DC Motors, General Purpose
