LDA100

IXYS Integrated Circuits Division

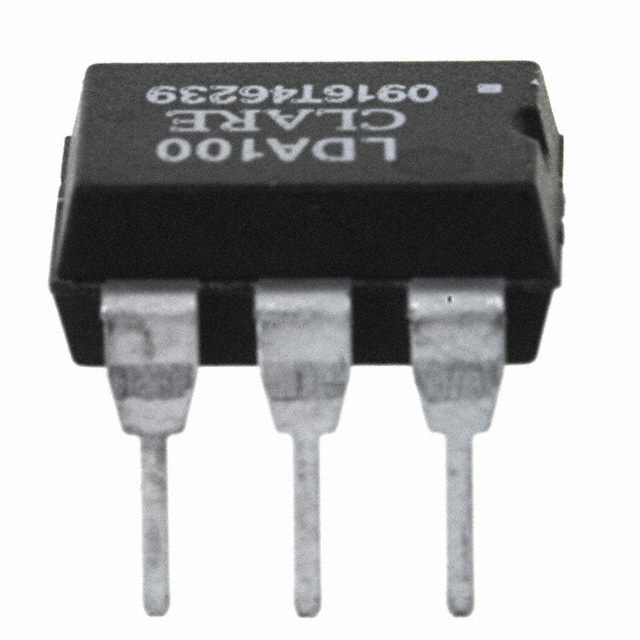

Image may be representation. See specifications for product details.

Product Overview

Part Number:	LDA100
Manufacturer/Brand:	IXYS Integrated Circuits Division
Product description	OPTOISO 3.75KV TRANS W/BASE 6DIP
Datasheets:	LDA100.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	173739 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 173739 pcs

Reference Price (In US Dollars)

1 pcs: $0.411

10 pcs: $0.334

50 pcs: $0.257

100 pcs: $0.231

250 pcs: $0.206

500 pcs: $0.175

1000 pcs: $0.144

2500 pcs: $0.137

5000 pcs: $0.134

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.411

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of LDA100

Part Number	LDA100	Manufacturer	IXYS Integrated Circuits Division
Description	OPTOISO 3.75KV TRANS W/BASE 6DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	173739 pcs	Data sheet	LDA100.pdf
Voltage - Output (Max)	30V	Voltage - Isolation	3750Vrms
Voltage - Forward (Vf) (Typ)	1.2V	Vce Saturation (Max)	500mV
Turn On / Turn Off Time (Typ)	7µs, 20µs	Supplier Device Package	6-DIP
Series	-	Rise / Fall Time (Typ)	-
Packaging	Tube	Package / Case	6-DIP (0.300", 7.62mm)
Output Type	Transistor with Base	Other Names	CLA185
Operating Temperature	-40°C ~ 85°C	Number of Channels	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	5 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	AC, DC	Detailed Description	Optoisolator Transistor with Base Output 3750Vrms 1 Channel 6-DIP
Current Transfer Ratio (Min)	33% @ 1mA	Current Transfer Ratio (Max)	-
Current - Output / Channel	-	Current - DC Forward (If) (Max)	1mA
