IXFP14N85X

IXYS CorporationIXYS Corporation

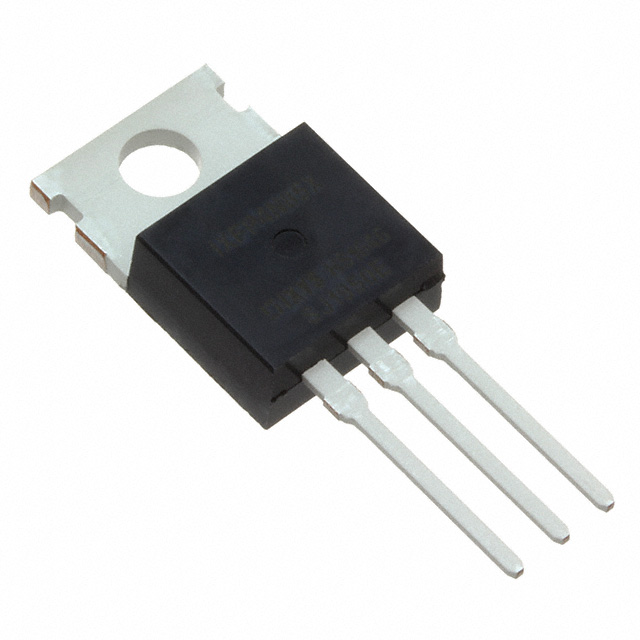

IXFP14N85X Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: IXFP14N85X
Manufacturer/Brand: IXYS Corporation
Product description MOSFET N-CH 850V 14A TO220AB
Datasheets: IXFP14N85X.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 38522 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 38522 pcs
Reference Price (In US Dollars)
1 pcs
$1.998
50 pcs
$1.606
100 pcs
$1.463
500 pcs
$1.185
1000 pcs
$0.999
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$1.998

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of IXFP14N85X

Part Number IXFP14N85X Manufacturer IXYS Corporation
Description MOSFET N-CH 850V 14A TO220AB Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 38522 pcs Data sheet IXFP14N85X.pdf
Vgs(th) (Max) @ Id 5.5V @ 1mA Vgs (Max) ±30V
Technology MOSFET (Metal Oxide) Supplier Device Package TO-220AB (IXFP)
Series HiPerFET™ Rds On (Max) @ Id, Vgs 550 mOhm @ 500mA, 10V
Power Dissipation (Max) 460W (Tc) Packaging Tube
Package / Case TO-220-3 Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 24 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds 1043pF @ 25V Gate Charge (Qg) (Max) @ Vgs 30nC @ 10V
FET Type N-Channel FET Feature -
Drive Voltage (Max Rds On, Min Rds On) 10V Drain to Source Voltage (Vdss) 850V
Detailed Description N-Channel 850V 14A (Tc) 460W (Tc) Through Hole TO-220AB (IXFP) Current - Continuous Drain (Id) @ 25°C 14A (Tc)
