Hirose

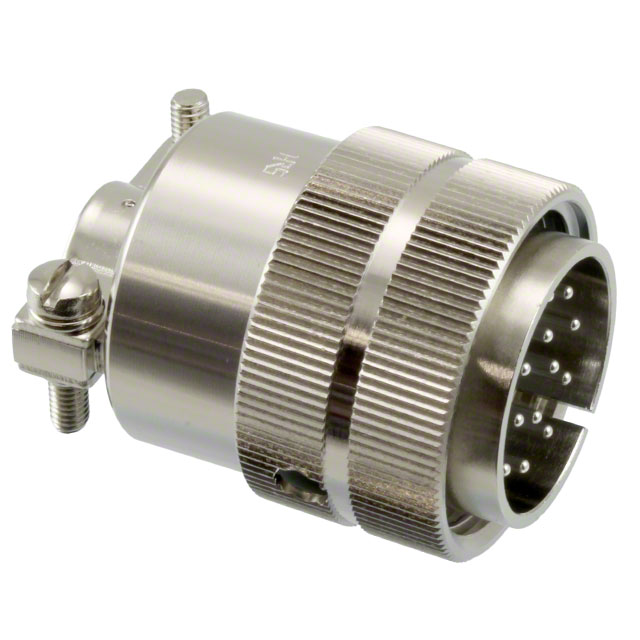

| Part Number | RM21TP-15P(71) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN PLUG MALE 15POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3092 pcs | Data sheet | RM21TP-15P(71).pdf |
| Voltage Rating | 500VAC, 700VDC | Termination | Solder Cup |
| Shielding | - | Shell Size, MIL | - |
| Shell Size - Insert | 21 | Shell Material | Brass |
| Shell Finish | Nickel | Series | RM |
| Packaging | Bulk | Other Names | H124399 Q4383043 RM21TP-15P(71)-ND T0823315 |
| Orientation | Keyed | Operating Temperature | -25°C ~ 85°C |
| Number of Positions | 15 | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Diallyl Phthalate (DAP) |
| Ingress Protection | - | Features | Backshell, Cable Clamp, Coupling Nut |
| Fastening Type | Threaded | Detailed Description | 15 Position Circular Connector Plug, Male Pins Solder Cup Silver |
| Current Rating | 5A | Contact Material | Brass |
| Contact Finish Thickness - Mating | 157.5µin (4.00µm) | Contact Finish - Mating | Silver |
| Connector Type | Plug, Male Pins | Color | Silver |
| Cable Opening | 0.591" (15.00mm) | Backshell Material, Plating | Brass, Nickel |
| Applications | - |
