Hirose

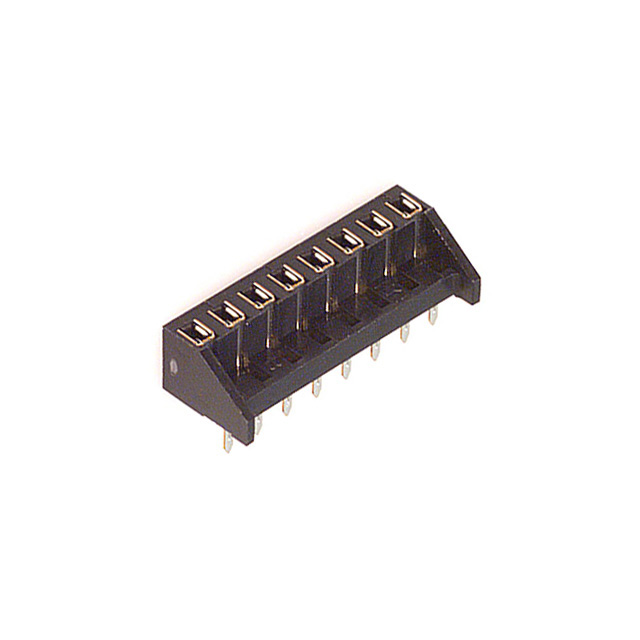

| Part Number | MDF7-8S-2.54DSA(55) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RECEPT 8POS SINGLE TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 99686 pcs | Data sheet | MDF7-8S-2.54DSA(55).pdf |
| Voltage Rating | 250VAC | Termination | Solder |
| Style | Board to Board | Series | MDF7 |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Other Names | *MDF7-8S-2.54DSA(55) H10657 MDF78S254DSA55 |
| Operating Temperature | -35°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 8 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.197" (5.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 8 Position Receptacle, Bottom Entry Connector 0.100" (2.54mm) Through Hole Tin | Current Rating | 3A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.118" (3.00mm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 78.7µin (2.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Receptacle, Bottom Entry | Applications | - |
