Hirose

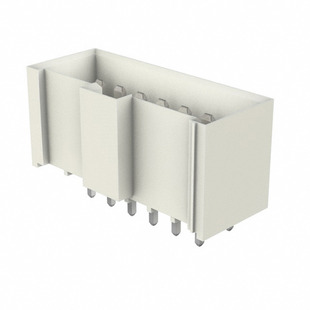

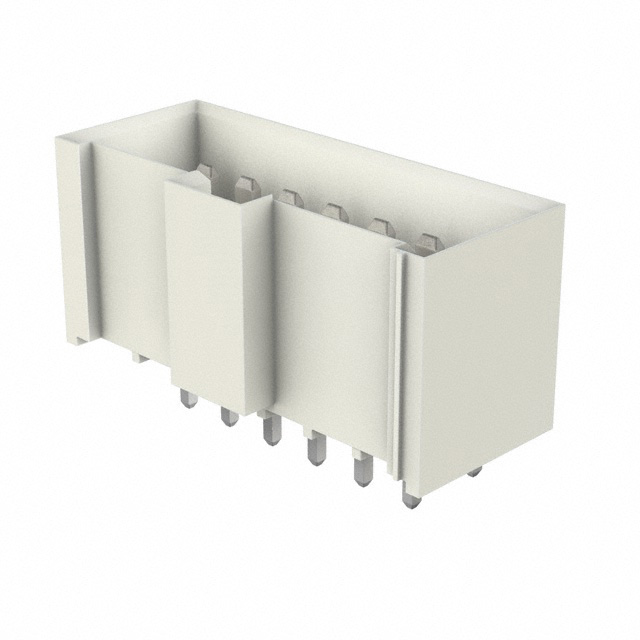

| Part Number | MDF6-14DP-3.5DSA(05) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HDR 14POS 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 82154 pcs | Data sheet | |
| Voltage Rating | 300V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | MDF6 | Row Spacing - Mating | 0.197" (5.00mm) |
| Pitch - Mating | 0.138" (3.50mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | 547-0088-6-05 |
| Operating Temperature | -30°C ~ 85°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 14 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.512" (13.00mm) |
| Insulation Color | White | Ingress Protection | - |
| Features | - | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole 14 position 0.138" (3.50mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.138" (3.50mm) |
| Contact Length - Mating | 0.220" (5.59mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Tin-Copper | Connector Type | Header |
| Applications | - |
