Hirose

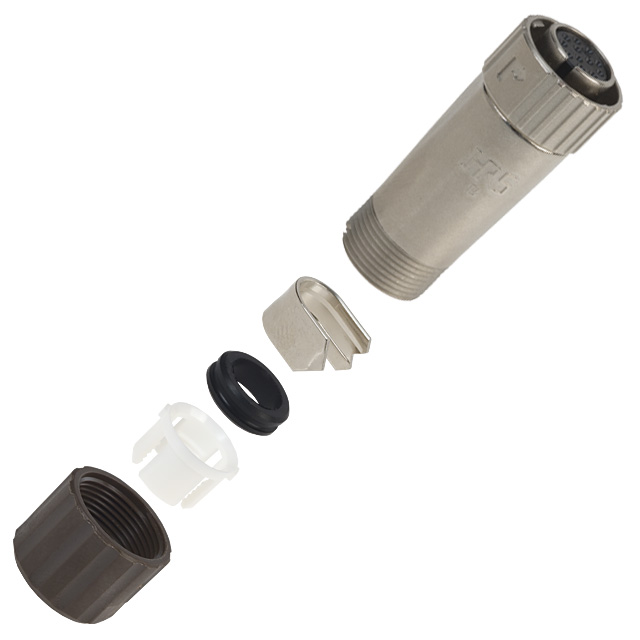

| Part Number | LF10WBP-12S | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN PLUG FMALE 12POS GOLD SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6230 pcs | Data sheet | LF10WBP-12S.pdf |
| Voltage Rating | 30VAC, 42VDC | Termination | Solder Cup |
| Shielding | Shielded | Shell Size, MIL | - |
| Shell Size - Insert | 10 | Shell Material | Zinc Alloy |
| Shell Finish | Nickel | Series | LF |
| Packaging | Tray | Other Names | *LF10WBP-12S HR555 LF10WBP12S |
| Orientation | Keyed | Operating Temperature | -25°C ~ 85°C |
| Number of Positions | 12 | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Polyphenylene Sulfide (PPS) | Ingress Protection | IP67/68 - Dust Tight, Waterproof |
| Features | Backshell, Clamp, Coupling Nut, Strain Relief | Fastening Type | Bayonet Lock |
| Detailed Description | 12 Position Circular Connector Plug, Female Sockets Solder Cup Gold | Current Rating | 2A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Mating | Gold | Connector Type | Plug, Female Sockets |
| Color | Brown, Silver | Cable Opening | - |
| Backshell Material, Plating | Zinc Alloy, Nickel | Applications | Industrial, Telecommunications |
