Hirose

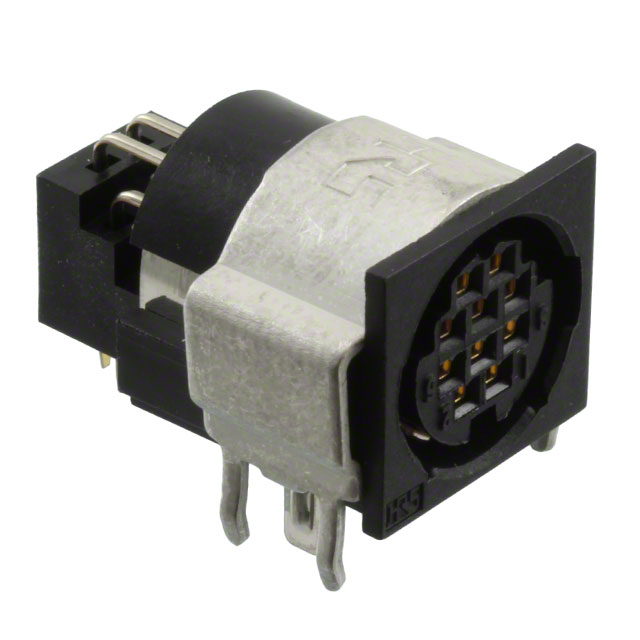

| Part Number | HR12-10RD-10SDL(71) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RCPT FMALE 10POS GOLD SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14484 pcs | Data sheet | HR12-10RD-10SDL(71).pdf |
| Voltage Rating | 100VAC, 140VDC | Termination | Solder |
| Shielding | Shielded | Shell Size, MIL | - |
| Shell Size - Insert | 10 | Shell Material | Polybutylene Terephthalate (PBT) |
| Shell Finish | - | Series | HR12 |
| Packaging | Tray | Other Names | 112-0512-0-71 H124055 HR12-10RD-10SDL(71)-ND |
| Orientation | Keyed | Operating Temperature | -15°C ~ 60°C |
| Number of Positions | 10 | Mounting Type | Through Hole, Right Angle |
| Mounting Feature | Flange | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | - |
| Ingress Protection | - | Features | Board Lock, Ground |
| Fastening Type | Snap-In | Detailed Description | 10 Position Circular Connector Receptacle, Female Sockets Solder Gold |
| Current Rating | - | Contact Material | Phosphor Bronze |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Female Sockets | Color | Black |
| Cable Opening | - | Backshell Material, Plating | - |
| Applications | - |
