HIF4-34P-3.18DSA

Hirose

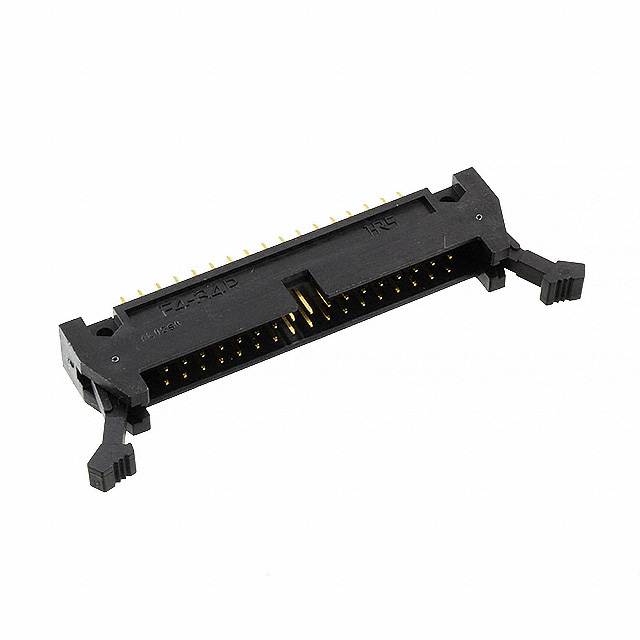

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HIF4-34P-3.18DSA
Manufacturer/Brand:	Hirose
Product description	CONN HDR 34POS 3.18MM
Datasheets:	HIF4-34P-3.18DSA.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10542 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 10542 pcs

Reference Price (In US Dollars)

1 pcs: $4.419

20 pcs: $4.019

100 pcs: $3.416

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.419

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HIF4-34P-3.18DSA

Part Number	HIF4-34P-3.18DSA	Manufacturer	Hirose
Description	CONN HDR 34POS 3.18MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10542 pcs	Data sheet	HIF4-34P-3.18DSA.pdf
Voltage Rating	300V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	HIF4	Row Spacing - Mating	0.125" (3.18mm)
Pitch - Mating	0.125" (3.18mm)	Packaging	Tray
Overall Contact Length	0.673" (17.09mm)	Other Names	563-0006-0-00 H123919 HIF4-34P-3.18DSA-ND
Operating Temperature	-55°C ~ 85°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	34
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT)	Insulation Height	0.720" (18.30mm)
Insulation Color	Black	Ingress Protection	-
Features	Keying Slot, Mounting Flange	Fastening Type	Latch Lock/Eject Hooks
Detailed Description	Connector Header Through Hole 34 position 0.125" (3.18mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.142" (3.60mm)
Contact Length - Mating	0.201" (5.10mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	8.00µin (0.203µm)	Contact Finish - Post	-
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
