HDAB-15PF(05)

Hirose

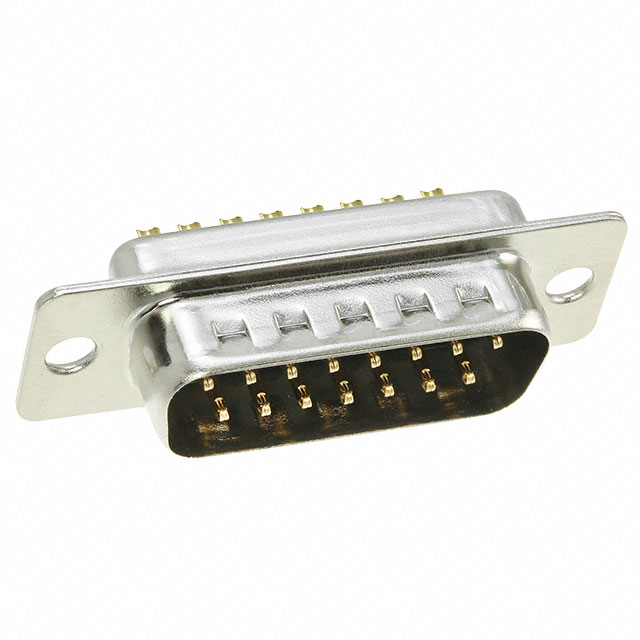

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HDAB-15PF(05)
Manufacturer/Brand:	Hirose
Product description	CONN D-SUB PLUG 15POS PNL MNT
Datasheets:	HDAB-15PF(05).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	19501 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 19501 pcs

Reference Price (In US Dollars)

1 pcs: $2.193

10 pcs: $2.105

30 pcs: $1.93

50 pcs: $1.842

100 pcs: $1.755

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.193

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HDAB-15PF(05)

Part Number	HDAB-15PF(05)	Manufacturer	Hirose
Description	CONN D-SUB PLUG 15POS PNL MNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19501 pcs	Data sheet	HDAB-15PF(05).pdf
Wire Gauge	-	Voltage Rating	400V
Termination	Solder Cup	Shell Size, Connector Layout	2 (DA, A)
Shell Material, Finish	Steel, Nickel Plated	Series	HD
Packaging	Tray	Other Names	H122681
Operating Temperature	-40°C ~ 85°C	Number of Rows	2
Number of Positions	15	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (Unthreaded)	Features	Grounding Indents
Detailed Description	15 Position D-Sub Plug, Male Pins Connector	Current Rating	3A
Contact Type	Signal	Contact Material	Copper Alloy
Contact Form	Stamped	Contact Finish Thickness	-
Contact Finish	Gold	Connector Type	Plug, Male Pins
Connector Style	D-Sub	Color	Black
Backset Spacing	-
