Hirose

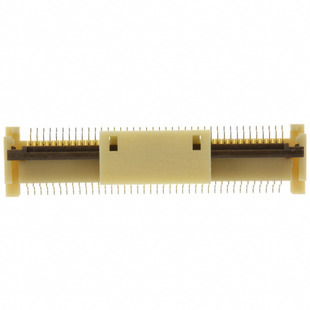

| Part Number | FH16-80S-0.3SHW(05) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FPC BOTTOM 80POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5474 pcs | Data sheet | FH16-80S-0.3SHW(05).pdf |
| Voltage Rating | 30V | Termination | Solder |
| Series | FH16 | Pitch | 0.012" (0.30mm) |
| Packaging | Original-Reel® | Other Names | FH1680S03SHW05 HFP180DKR |
| Operating Temperature | -40°C ~ 70°C | Number of Positions | 80 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 20 | Material Flammability Rating | UL94 V-0 |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Polyamide (PA), Nylon | Housing Color | Beige |
| Height Above Board | 0.118" (3.00mm) | Flat Flex Type | FPC |
| Features | Pick and Place Cap, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 80 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle | Current Rating | 0.15A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | Flash |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tabbed | Actuator Material | Polyphenylene Sulfide (PPS) |
| Actuator Color | Brown |
