Hirose

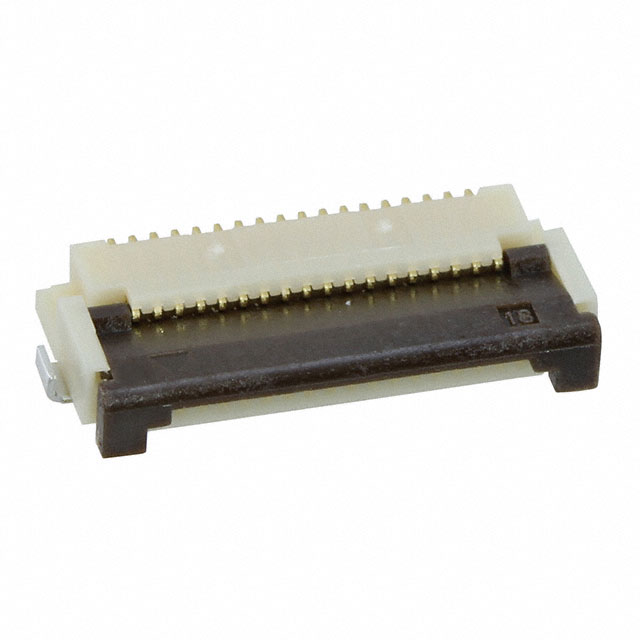

| Part Number | FH12F-18S-0.5SH(55) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN FFC BOTTOM 18POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 83423 pcs | Data sheet | 1.FH12F-18S-0.5SH(55).pdf2.FH12F-18S-0.5SH(55).pdf3.FH12F-18S-0.5SH(55).pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | FH12 | Pitch | 0.020" (0.50mm) |
| Packaging | Cut Tape (CT) | Other Names | H124716CT |
| Operating Temperature | -40°C ~ 85°C | Number of Positions | 18 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 20 | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 12 Weeks | Locking Feature | Flip Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA), Nylon |
| Housing Color | Beige | Height Above Board | 0.079" (2.00mm) |
| Flat Flex Type | FFC, FPC | Features | Zero Insertion Force (ZIF) |
| FFC, FCB Thickness | 0.18mm | Detailed Description | 18 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
| Current Rating | 0.5A | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Bottom | Cable End Type | Straight |
| Actuator Material | Polyphenylene Sulfide (PPS) | Actuator Color | Brown |
