Hirose

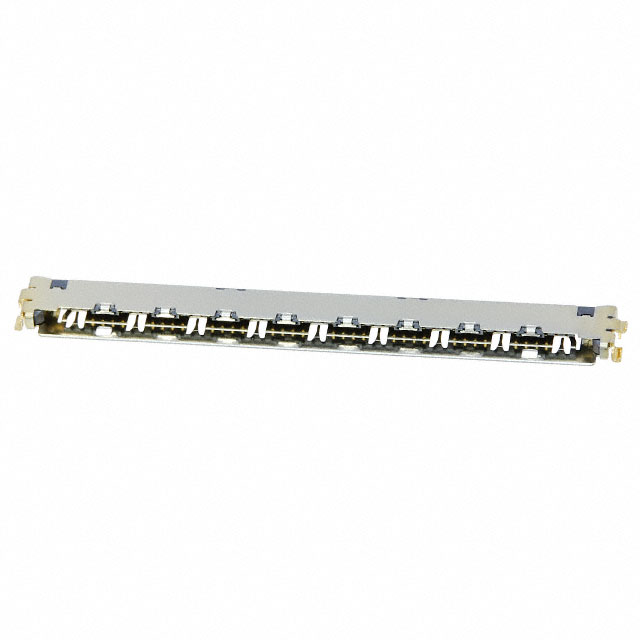

| Part Number | DF81-50S-0.4H(52) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RECEPT 0.4MM SMD 50POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48216 pcs | Data sheet | 1.DF81-50S-0.4H(52).pdf2.DF81-50S-0.4H(52).pdf3.DF81-50S-0.4H(52).pdf |
| Voltage Rating | 100V | Termination | Solder |
| Style | Board to Cable/Wire | Series | DF81 |
| Row Spacing - Mating | - | Pitch - Mating | 0.016" (0.40mm) |
| Packaging | Tape & Reel (TR) | Other Names | DF81-50S-0.4H(52)-ND H124702TR |
| Operating Temperature | -35°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 50 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP), Halogen Free | Insulation Height | 0.035" (0.90mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Grounding Tab, Shielded | Fastening Type | Latch Holder |
| Detailed Description | 50 Position Receptacle Connector 0.016" (0.40mm) Surface Mount, Right Angle Gold | Current Rating | 0.3A |
| Contact Type | Center Strip Contact | Contact Shape | - |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | 2.00µin (0.051µm) | Contact Finish Thickness - Mating | 3.90µin (0.099µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
