Hirose

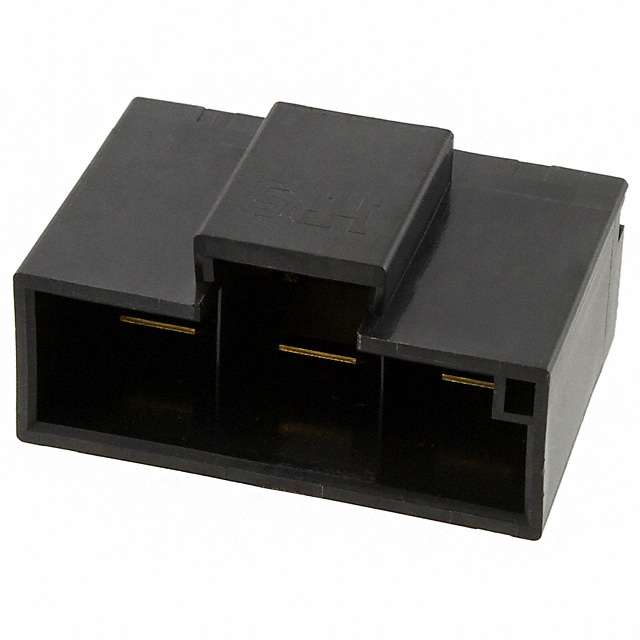

| Part Number | DF60-3P-10.16DSA(26) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HDR 10.16MM VERT PCB 3POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31017 pcs | Data sheet | DF60-3P-10.16DSA(26).pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | EnerBee™ DF60 | Row Spacing - Mating | - |
| Pitch - Mating | 0.400" (10.16mm) | Packaging | Tray |
| Overall Contact Length | - | Other Names | H122136 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 3 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 30mm |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polybutylene Terephthalate (PBT) | Insulation Height | 0.846" (21.50mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Latch Holder |
| Detailed Description | Connector Header Through Hole 3 position 0.400" (10.16mm) | Current Rating | - |
| Contact Type | Male Blade | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.150" (3.81mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
