Hirose

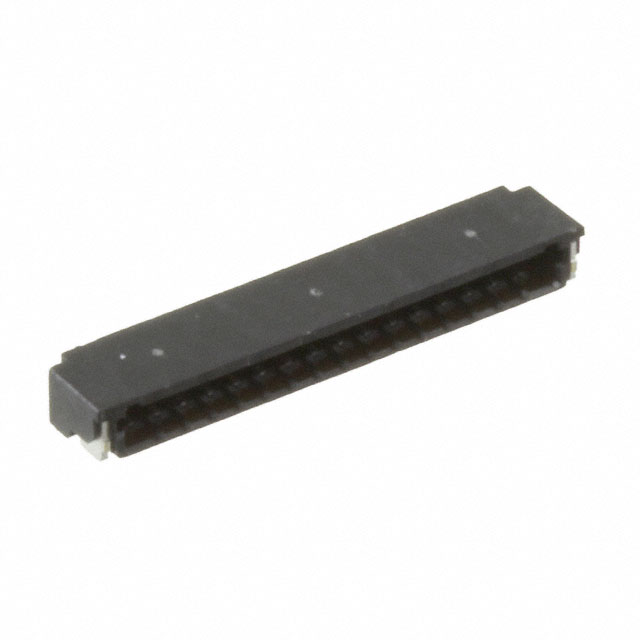

| Part Number | DF52-16S-0.8H(21) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RCPT 0.8MM 16POS R/A PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 118102 pcs | Data sheet | 1.DF52-16S-0.8H(21).pdf2.DF52-16S-0.8H(21).pdf |
| Voltage Rating | 100V | Termination | Solder |
| Style | Board to Cable/Wire | Series | DF52 |
| Row Spacing - Mating | - | Pitch - Mating | 0.031" (0.80mm) |
| Packaging | Cut Tape (CT) | Other Names | H125106CT |
| Operating Temperature | -40°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 16 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon, Halogen Free | Insulation Height | 0.069" (1.75mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Glow Wire Compliant, Solder Retention | Fastening Type | Detent Lock |
| Detailed Description | 16 Position Socket Connector 0.031" (0.80mm) Surface Mount, Right Angle Tin | Current Rating | 1.5A |
| Contact Type | Non-Gendered | Contact Shape | - |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Socket | Applications | - |
