Hirose

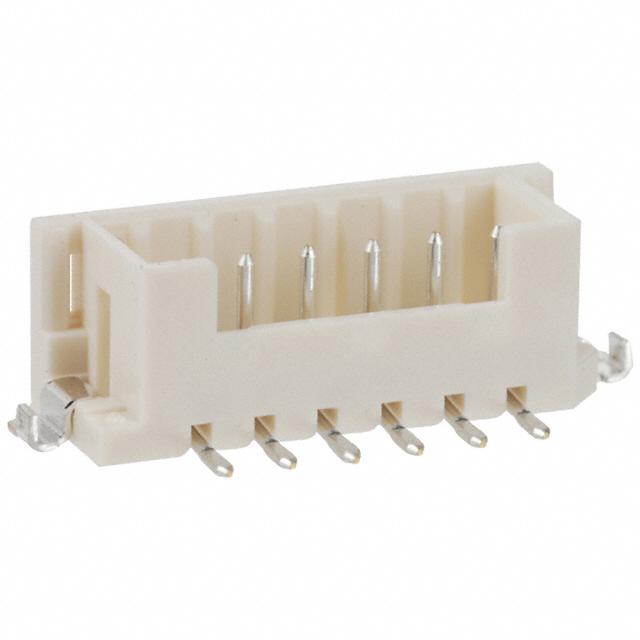

| Part Number | DF3E-6P-2V(21) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 6POS 2MM VERT TIN | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Quantity Available | 159955 pcs | Data sheet | DF3E-6P-2V(21).pdf |
| Voltage Rating | 250VAC | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Shrouded - 4 Wall |
| Series | DF3 | Row Spacing - Mating | - |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tape & Reel (TR) |
| Overall Contact Length | - | Other Names | 543-0361-0-21 H125422TR |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 6 |
| Mounting Type | Surface Mount | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Not applicable / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.232" (5.90mm) | Insulation Color | Beige |
| Ingress Protection | - | Features | Board Guide, Solder Retention |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 6 position 0.079" (2.00mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
