Hirose

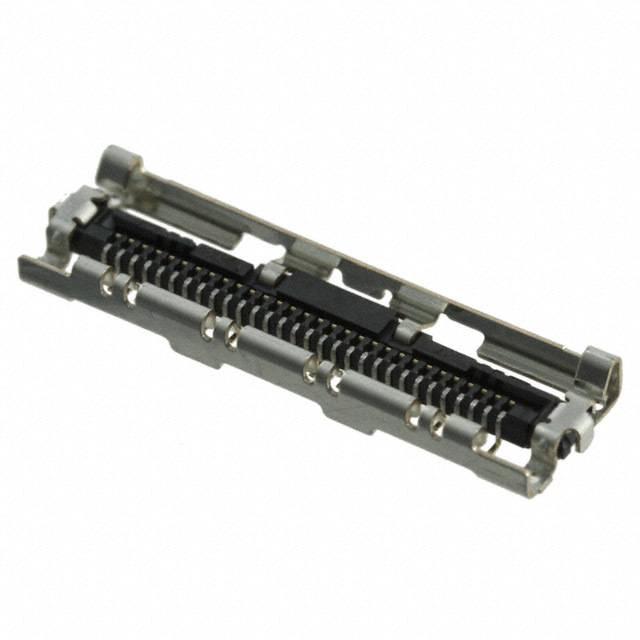

| Part Number | DF36A-30S-0.4V(51) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RCPT 0.4MM 30POS AU SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 86041 pcs | Data sheet | 1.DF36A-30S-0.4V(51).pdf2.DF36A-30S-0.4V(51).pdf3.DF36A-30S-0.4V(51).pdf |
| Voltage Rating | 30VAC | Termination | Solder |
| Style | Board to Cable/Wire | Series | DF36 |
| Row Spacing - Mating | - | Pitch - Mating | 0.016" (0.40mm) |
| Packaging | Tape & Reel (TR) | Other Names | DF36A30S04V51 H11978TR |
| Operating Temperature | -35°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 30 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Insulation Height | 0.059" (1.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Metal Cover, Solder Retention |
| Fastening Type | Friction Lock | Detailed Description | 30 Position Receptacle Connector 0.016" (0.40mm) Surface Mount Gold |
| Current Rating | Varies by Wire Gauge | Contact Type | Center Strip Contact |
| Contact Shape | - | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | 3.90µin (0.099µm) |
| Contact Finish Thickness - Mating | 12.0µin (0.30µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
