DF1B-4DP-2.5DS(01)

Hirose

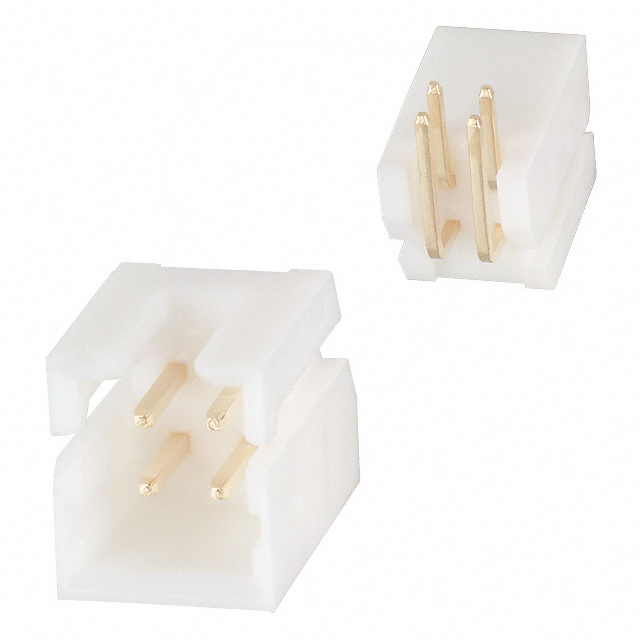

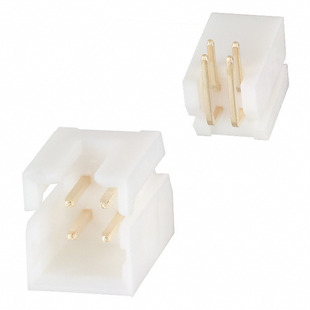

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DF1B-4DP-2.5DS(01)
Manufacturer/Brand:	Hirose
Product description	CONN HEADER 4POS 2.5MM R/A GOLD
Datasheets:	1.DF1B-4DP-2.5DS(01).pdf 2.DF1B-4DP-2.5DS(01).pdf 3.DF1B-4DP-2.5DS(01).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	210564 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 210564 pcs

Reference Price (In US Dollars)

1 pcs: $0.217

10 pcs: $0.204

100 pcs: $0.156

500 pcs: $0.136

1000 pcs: $0.112

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.217

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DF1B-4DP-2.5DS(01)

Part Number	DF1B-4DP-2.5DS(01)	Manufacturer	Hirose
Description	CONN HEADER 4POS 2.5MM R/A GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	210564 pcs	Data sheet	1.DF1B-4DP-2.5DS(01).pdf 2.DF1B-4DP-2.5DS(01).pdf 3.DF1B-4DP-2.5DS(01).pdf
Voltage Rating	250V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	DF1B	Row Spacing - Mating	0.098" (2.50mm)
Pitch - Mating	0.098" (2.50mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	*DF1B-4DP-2.5DS(01) DF1B4DP25DS01 H3649
Operating Temperature	-35°C ~ 85°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.339" (8.61mm)
Insulation Color	White	Ingress Protection	-
Features	Keying Slot	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole, Right Angle 4 position 0.098" (2.50mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.130" (3.30mm)
Contact Length - Mating	0.177" (4.50mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	8.00µin (0.203µm)	Contact Finish - Post	-
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
