DF14-25P-1.25H(55)

Hirose

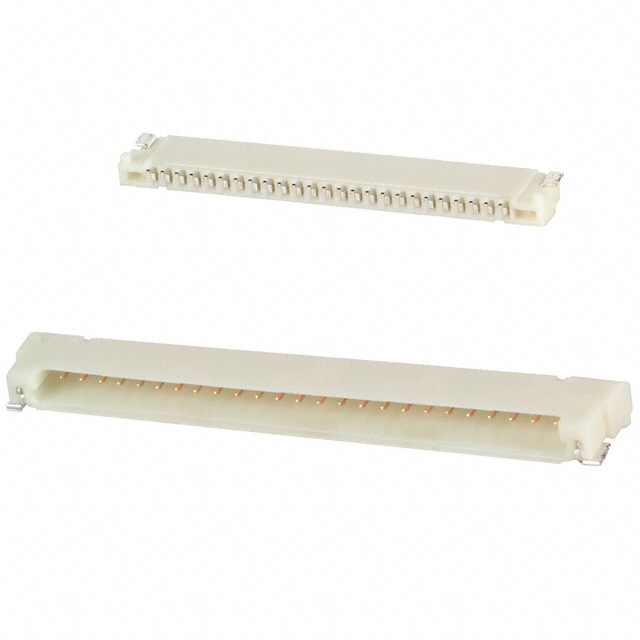

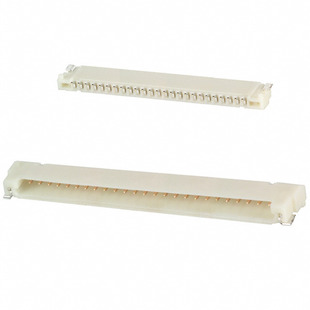

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DF14-25P-1.25H(55)
Manufacturer/Brand:	Hirose
Product description	CONN HEADER 25POS 1.25MM R/A SMD
Datasheets:	1.DF14-25P-1.25H(55).pdf 2.DF14-25P-1.25H(55).pdf 3.DF14-25P-1.25H(55).pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	50511 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 50511 pcs

Reference Price (In US Dollars)

1 pcs: $0.944

13 pcs: $0.905

104 pcs: $0.754

507 pcs: $0.641

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.944

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DF14-25P-1.25H(55)

Part Number	DF14-25P-1.25H(55)	Manufacturer	Hirose
Description	CONN HEADER 25POS 1.25MM R/A SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	50511 pcs	Data sheet	1.DF14-25P-1.25H(55).pdf 2.DF14-25P-1.25H(55).pdf 3.DF14-25P-1.25H(55).pdf
Voltage Rating	150V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	DF14	Row Spacing - Mating	-
Pitch - Mating	0.049" (1.25mm)	Packaging	Tube
Overall Contact Length	-	Other Names	*DF14-25P-1.25H(55) DF1425P125H55 H10309
Operating Temperature	-35°C ~ 85°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	25
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA), Nylon
Insulation Height	0.098" (2.50mm)	Insulation Color	Beige
Ingress Protection	-	Features	Board Guide, Solder Retention
Fastening Type	Push-Pull	Detailed Description	Connector Header Surface Mount, Right Angle 25 position 0.049" (1.25mm)
Current Rating	1A	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	-	Contact Length - Mating	0.086" (2.20mm)
Contact Finish Thickness - Post	39.4µin (1.00µm)	Contact Finish Thickness - Mating	3.90µin (0.099µm)
Contact Finish - Post	Tin-Copper	Contact Finish - Mating	Gold
Connector Type	Header	Applications	-
