Hirose

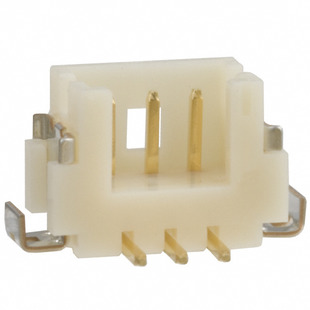

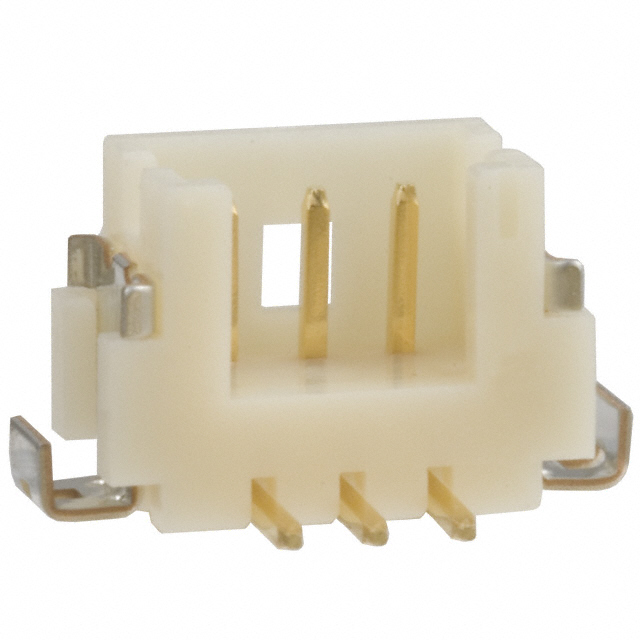

| Part Number | DF13-3P-1.25V(50) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 3POS 1.25MM SMD GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 159863 pcs | Data sheet | 1.DF13-3P-1.25V(50).pdf2.DF13-3P-1.25V(50).pdf3.DF13-3P-1.25V(50).pdf |
| Voltage Rating | 150V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | DF13 | Row Spacing - Mating | - |
| Pitch - Mating | 0.049" (1.25mm) | Packaging | Tube |
| Overall Contact Length | - | Other Names | *DF13-3P-1.25V(50) DF133P125V50 H3337 |
| Operating Temperature | -35°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 3 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 5.8mm |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.189" (4.80mm) | Insulation Color | Beige |
| Ingress Protection | - | Features | Board Guide, Solder Retention |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Surface Mount 3 position 0.049" (1.25mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
