Hirose

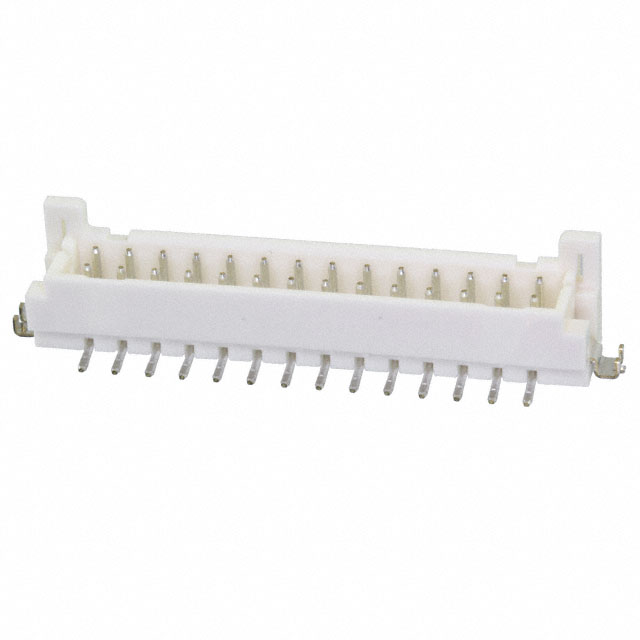

| Part Number | DF11CZ-28DP-2V(27) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HDR 28POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 82604 pcs | Data sheet | 1.DF11CZ-28DP-2V(27).pdf2.DF11CZ-28DP-2V(27).pdf3.DF11CZ-28DP-2V(27).pdf |
| Voltage Rating | 250V | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Shrouded - 4 Wall |
| Series | DF11 | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tape & Reel (TR) |
| Overall Contact Length | - | Other Names | 543-2059-3-27 DF11CZ-28DP-2V(27)-ND H124558TR |
| Operating Temperature | -30°C ~ 85°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 28 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 8.2mm, 8.45mm, 9.55mm |
| Manufacturer Standard Lead Time | 12 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.283" (7.19mm) |
| Insulation Color | Beige | Ingress Protection | - |
| Features | Pick and Place, Solder Retention | Fastening Type | Detent Lock |
| Detailed Description | Connector Header Surface Mount 28 position 0.079" (2.00mm) | Current Rating | 2A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
