Hirose

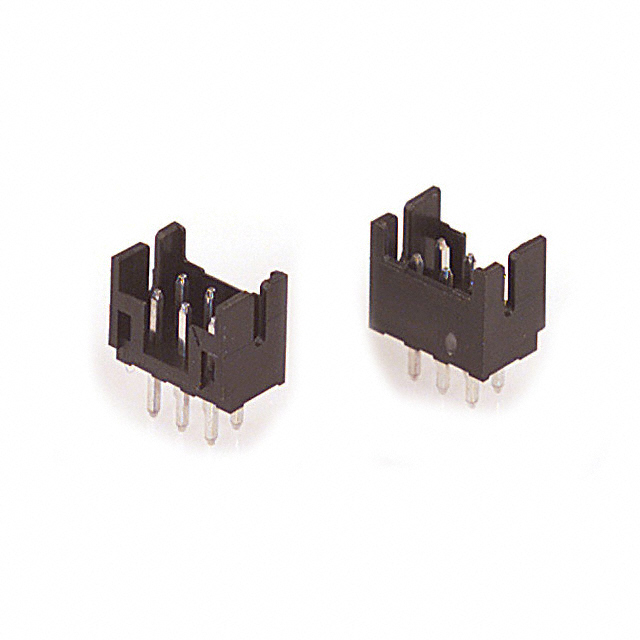

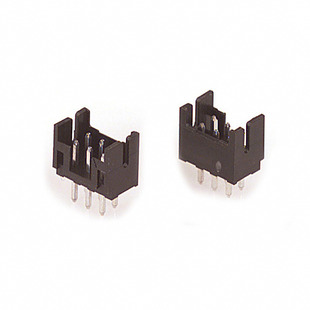

| Part Number | DF11-6DP-2DSA(20) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN HEADER 6POS 2MM PCB TIN | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4448 pcs | Data sheet | DF11-6DP-2DSA(20).pdf |
| Voltage Rating | 250V | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Shrouded - 4 Wall |
| Series | DF11 | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tube |
| Overall Contact Length | 0.299" (7.60mm) | Other Names | *DF11-6DP-2DSA(20) DF11-6DP-2DSA H2051 |
| Operating Temperature | -30°C ~ 85°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 6 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 7.55, 7.8mm, 8.9mm |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.260" (6.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole 6 position 0.079" (2.00mm) |
| Current Rating | 2A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | 0.118" (3.00mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
