Hirose

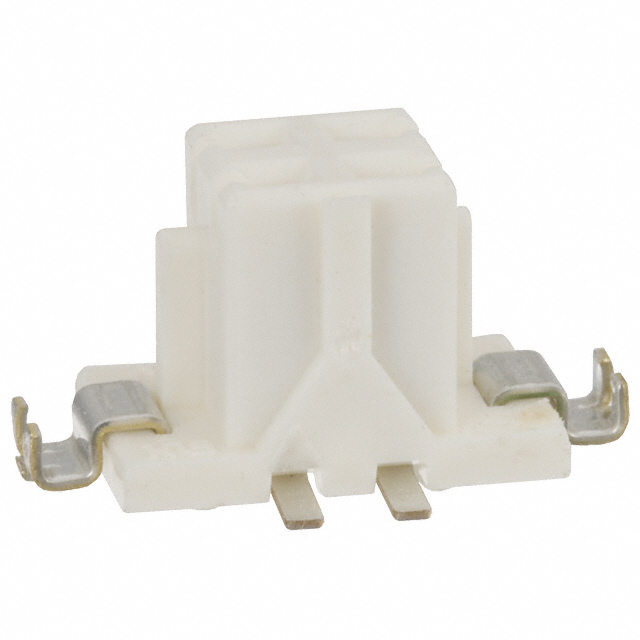

| Part Number | DF11-4DS-2V(20) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RECEPT 4POS 2MM SMD TIN | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5202 pcs | Data sheet | DF11-4DS-2V(20).pdf |
| Voltage Rating | 250V | Termination | Solder |
| Style | Board to Board or Cable | Series | DF11 |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Other Names | *DF11-4DS-2V(20) DF11-4DS-2V H2039 |
| Operating Temperature | -30°C ~ 85°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 7.55mm, 8.2mm |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.234" (5.95mm) | Insulation Color | Beige |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Friction Lock | Detailed Description | 4 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Tin |
| Current Rating | 2A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle |
| Applications | General Purpose |
