Hirose

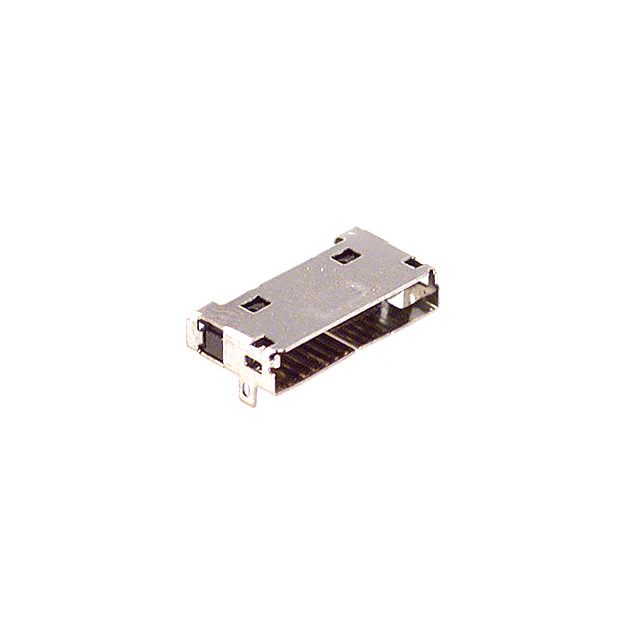

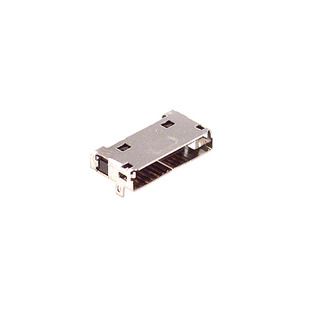

| Part Number | 3260B-12S3(55) | Manufacturer | Hirose |
|---|---|---|---|
| Description | CONN RECEPTACLE 12 POS SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 61148 pcs | Data sheet | 1.3260B-12S3(55).pdf2.3260B-12S3(55).pdf3.3260B-12S3(55).pdf |
| Voltage Rating | 125VAC | Termination | Solder |
| Style | Board to Cable/Wire | Series | 3200 |
| Row Spacing - Mating | - | Pitch - Mating | 0.031" (0.80mm) |
| Packaging | Tape & Reel (TR) | Other Names | 232-0090-4-55 |
| Operating Temperature | - | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 12 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyphenylene Sulfide (PPS) | Insulation Height | 0.114" (2.90mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide, Shielded | Fastening Type | Latch Holder |
| Detailed Description | 12 Position Receptacle Connector 0.031" (0.80mm) Surface Mount, Right Angle Gold | Current Rating | 500mA |
| Contact Type | Center Strip Contact | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | 1.25µin (0.032µm) | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | General Purpose |
