Hirose
| Part Number | 3260-10S3(56) | Manufacturer | Hirose |
|---|---|---|---|

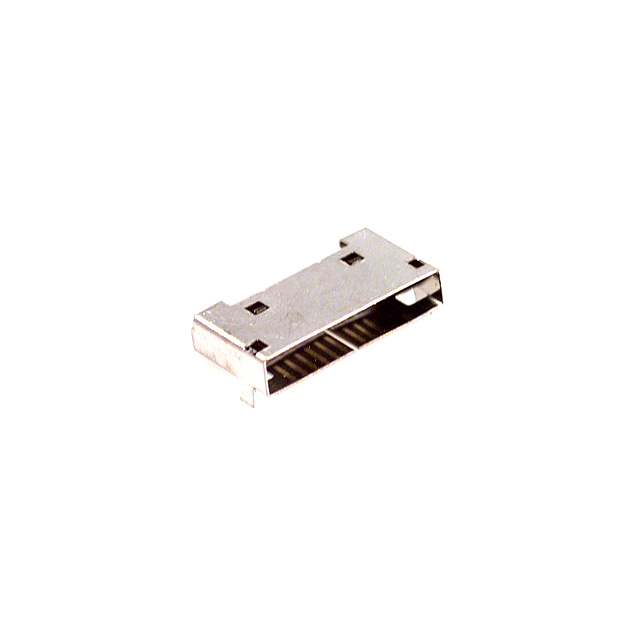

| Description | CONN RECEPTACLE 10 POS SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 49372 pcs | Data sheet | 3260-10S3(56).pdf |
| Voltage Rating | 125VAC | Termination | Solder |
| Style | Board to Cable/Wire | Series | 3200 |
| Row Spacing - Mating | - | Pitch - Mating | 0.031" (0.80mm) |
| Packaging | Tape & Reel (TR) | Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 16 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyphenylene Sulfide (PPS) |
| Insulation Height | 0.114" (2.90mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Shielded |
| Fastening Type | Latch Holder | Detailed Description | 10 Position Receptacle Connector 0.031" (0.80mm) Surface Mount, Right Angle Gold |
| Current Rating | 500mA | Contact Type | Center Strip Contact |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | 1.25µin (0.032µm) |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | General Purpose |
