Harwin

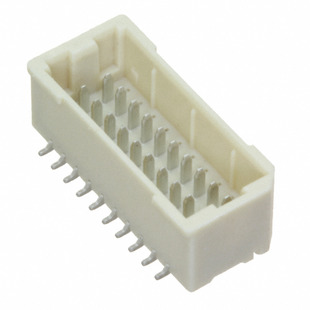

| Part Number | M40-3021046 | Manufacturer | Harwin |
|---|---|---|---|
| Description | 10+10 WAY 1.00MM DIL VERT MALE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 60032 pcs | Data sheet | M40-3021046.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | M40 | Row Spacing - Mating | 0.051" (1.30mm) |
| Pitch - Mating | 0.039" (1.00mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | 952-3491 |
| Operating Temperature | -25°C ~ 85°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 20 |
| Mounting Type | Surface Mount | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA9T), Nylon 9T |
| Insulation Height | 0.167" (4.25mm) | Insulation Color | - |
| Ingress Protection | - | Features | Board Guide, Pick and Place, Solder Retention |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Surface Mount 20 position 0.039" (1.00mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Rectangular | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
