Harwin

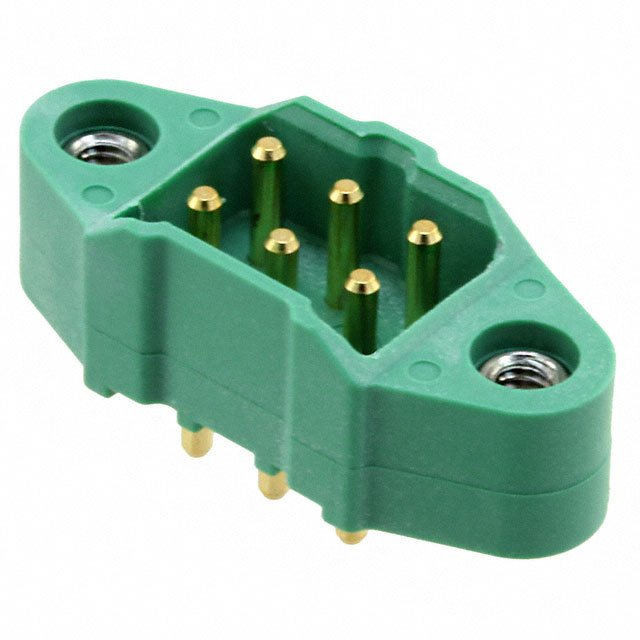

| Part Number | M300-MV30645M1 | Manufacturer | Harwin |
|---|---|---|---|
| Description | CONN HDR 3MM VERT PCB 6POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 27575 pcs | Data sheet | 1.M300-MV30645M1.pdf2.M300-MV30645M1.pdf3.M300-MV30645M1.pdf |
| Voltage Rating | 600VAC/DC | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Shrouded - 4 Wall |
| Series | M300 | Row Spacing - Mating | 0.118" (3.00mm) |
| Pitch - Mating | 0.118" (3.00mm) | Packaging | Tube |
| Overall Contact Length | - | Other Names | 952-2523-5 |
| Operating Temperature | -65°C ~ 175°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 6 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 8.90mm, 14.10mm, 14.90mm, 19.75mm |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled | Insulation Height | 0.276" (7.00mm) |
| Insulation Color | Green | Ingress Protection | - |
| Features | Mating Flange | Fastening Type | Threaded |
| Detailed Description | Connector Header Through Hole 6 position 0.118" (3.00mm) | Current Rating | 10A |
| Contact Type | Male Pin, Power | Contact Shape | Circular |
| Contact Material | Brass | Contact Length - Post | 0.126" (3.20mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 29.5µin (0.75µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
